Boom Pump Truck Deliver Construction Equipment

Product Description

Product Description
Concrete pump is used to deliver concrete to job site above ground or underground, such as high-rise building or tunnel construction.

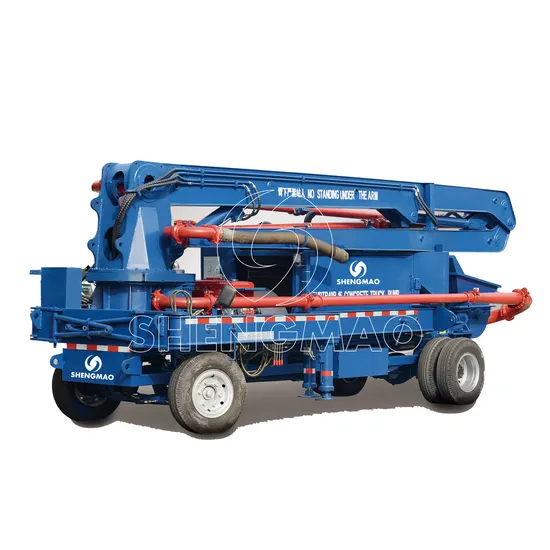

For this mini boom pump is suitable for the small & middle project, it can pump the concrete to 14 meters high, and it's much cheaper than the boom pump with car chassis.
We use world famous brand for the main parts of our concrete pump which can ensure the performance of the machine.

Items		Units	Parameters
			ZHBTB40R-14
Main parameters	Max. theorectical concrete delivery capacity (high/ low pressure)	m3/h	40
	Main hydraulic pump		Korean Kawasaki
	Max. concrete pumping pressure	Mpa	10
	Distribution valve type		S valve
	concrete conveying cylinder bore*stroke	mm	Ф180×1300
	Hopper capacity	L	500
	Feeding height	mm	1300
	outlet diameter	mm	Ф150
Power system	diesel engine brand		Weichai
	diesel engine power	kw	82
	rated rotate speed	r/min	2200
Hydraulic system	hydraulic circuit form		Open circuit
	pumping system oil pressure	Mpa	31.5
	Mixing system pressure	Mpa	6-8
	Capacity of oil tank	L	370
Max. vertical height of boom		m	15.4
Other parameters	Max. aggregate diameter	mm	30
	Inside diameter of delivering pipe	mm	Ф125
	Overall size: length*width*height	mm	7500x2200x2920
	Total weight	kg	6500

Main Features 1) Saving cost; It is much cheaper than the boom pump with car chassis;
2) Saving labours; one operator is ok;
3) Easy to operate;
4) Reliable performance; If the machine is operated properly, it can work properly more than 5 years;
5) Easy to move.
Packing&Shipping
Certifications


Other related concrete pump
HBTS10R Diesel Concrete Pump
Capacity: 10m³/h Max. aggregate diameter: 30mm Max.Conveying Distance (Vertical/Horizontal): 30/80m
Diesel engine power: 36kw


HBTS20R Diesel Concrete Pump
Capacity: 20 m³/h Max. aggregate diameter: 30mm Conveying Distance (Vertical/Horizontal): 120/350m
Diesel engine power: 36kw

BS30R diesel powered concrete pump Capacity: 30 m³/h
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m
Diesel engine power: 56kw

BS30 electricity powered concrete pump Capacity: 30 m³/h
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m
Motor power: 37kw

HBTS40R diesel powered concrete pump Capacity: 40 m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m
Diesel engine power: 62kw

HBTS40 electricity powered concrete pump Capacity: 40m3/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m
Motor power: 45kw

HBTS60R diesel powered concrete pump Capacity: 60m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Diesel engine power: 82kw

HBTS60 electricity powered concrete pump Capacity: 60m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Motor power: 90kw

HBTS80R diesel powered concrete pump Capacity: 80m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Diesel engine power: 129kw

HBTS80 electricity powered concrete pump Capacity: 80m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw

HBTS90R diesel powered concrete pump Capacity: 90m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Diesel engine power: 129kw

HBTS90 electricity powered concrete pump Capacity: 90m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw

Our Services

Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
