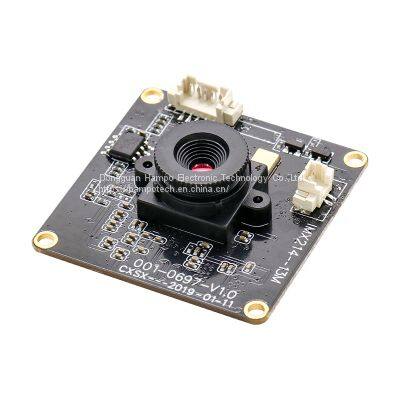

13MP 30fps Sony CMOS Sensor IMX214 Driver Free Camera Module

Product Details

Product Description

Product Description
Product Description

Model	003-0697
Max Resolution	4192*3104
Sensor Size	1/3.06"
Pixel Size	1.12μm*1.12μm
Wide Dynamic range	/
Output Format	MJPG/YUY2
Focus	Fixed focus
Frame rate	30fps/7fps
Voltage	DC 5V
Working current	MAX 500mA
Interface	USB 2.0
Storage Temperature	-20°C to +70°C
System compatibility	1) Windows XP（SP2,SP3）/Vista/7/8/10 2) Linux or OS with UVC driver
Audio	/
PCBA Size	38*38mm
FOV	D=69°
TTL	6.3mm
Lens construction	5P
Thread size	M12*P0.5mm

003-0697 is a 13MP resolution,support 4192X3104 and YUV video streaming USB camera module. Mini fixed focus lens USB camera ,true and no distortion color image.
Widely used in document scanner, beauty equipment, education products, etc. During scanning, all the corners of the document is clear as the center part.
