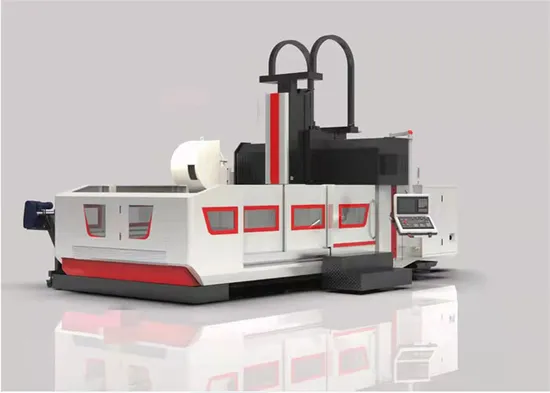

Ls2317 4 Axis Double Column Machining Center Gantry Type Machine Center

Product Description

Product Description
The 5 axis double column machining center is a high performace CNC machining center with high rigidity and precision characteristics. The gate bridge and the base of this machine adopts integrated structural design to strengthen the structure strength and provide excellent stability for the machine. All structural castings are also analyzed by FEM finite element, which has the advantages of lightweight structure. The worktable size of this machine is 2300mm*1500mm, it uses double - layer reinforced ribs hollow damping structure, which has high stability. The maximum load capability of this machine is up to 8T. Excellent worktable size, excellent load capacity, excellent body strength and reasonable body structure make this machine as the first choice for heavy cutting and complex parts machining.

Main Features
Integrated structural design High speed spindle: 6000RPM High rigidity for overall machine 5 Axis Worktable size: 2300mm*1500mm X / Y / Z axis travel distance: 2300mm / 1700mm / 800mm Maximum cutting feed speed: 10 - 7000 RPM Detailed Photos
Product Parameters

ITEM	MODELS	LS2317
WORKTABLE (WIDTH*LENGTH)	mm	2300*1500
MAX LOAD BEARING OF WORKTABLE	T	8
X/Y/Z AXIS TRAVEL	mm	2300/1700/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	240-1040
SPINDLE HOLE TAPER		TB50
SPINDLE SPEED RANGE	r/min	6000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	Optional
DISTANCE BETWEEN TOW COLUMNS	mm	1700
X/Y/Z RAPID FEED SPEED	m/min	15/15/12
MAX CUTTING FEED SPEED	m/min	10-7000
X/Y/Z POSITION ACCURACY	mm	±0.015/300
X/Y/Z RE-POSITION ACCURACY	mm	±0.01
MACHINE DIMENSION	mm	6800*4560*4500
MACHINE WEIGHT	T	21
POWER DEMAND	KVA	35
AIR PRESSURE	m ³mim	7

Standard Configuration for Gantry Series 1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series 1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system

Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
