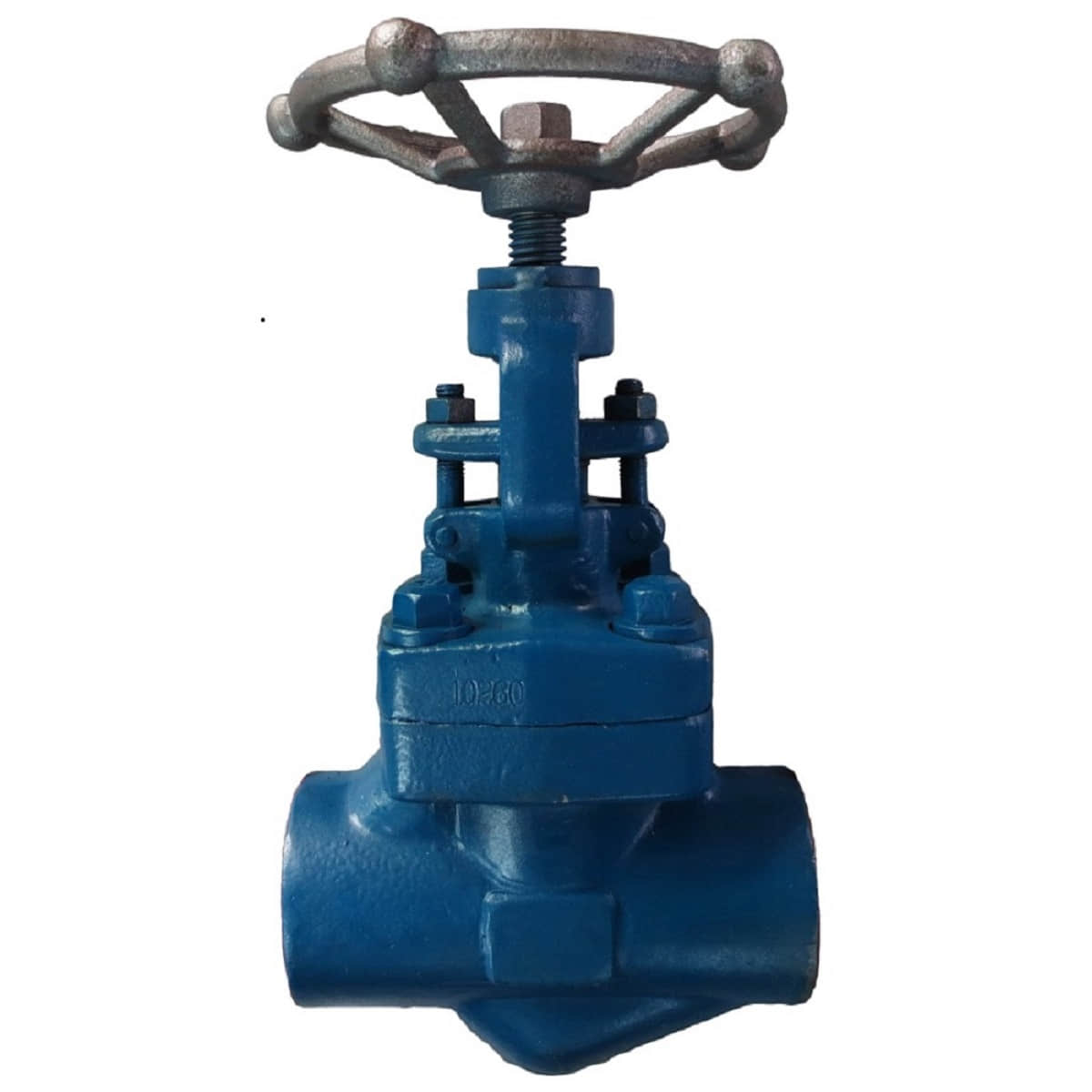

API 602 Forged Globe Valve

Product Details

Product Details

Product Description

Product Description
Our gate valves are industry approved for a wide range of applications, from oil & gas to pulp & paper.
General
Size: 1/4"-4".
Pressure Rating: up to 1500LB
Design Temperature: ASME B16.34 pressure temperature rating.
General applications: water, oil , gas
Design
Design & Manufacture: API 602, API 600, ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.
Structure : SOLID DISC, OS&Y, BB, FB.
General Material
BODY AND BONNET: ASTM A105 .
DISC: ASTM A105
STEM: A182 F6A
SEAT: A182 F6A
OPERATOR: WHEEL
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.
Test
Inspection and approval norm: API598, API6D.
Quality Control
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
