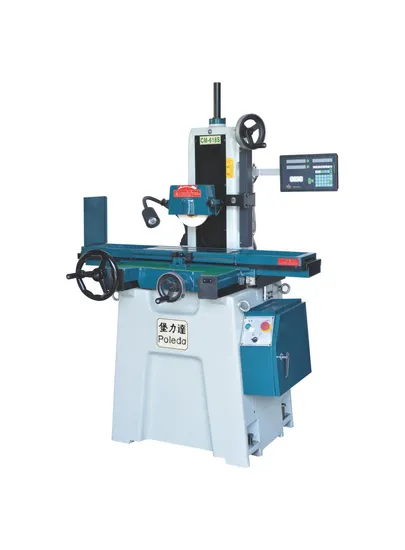

618h High Precision Surface Grinding Machine (Z-axis increased 100mm) Taiwan Quality

Product Description

Surface grinding machine product introduction
Surface grinding machine is a grinding machine, is mainly used by the rotation of the grinding wheel to grind the Machined part, to achieve the required flatness. According to the shape of the table, surface grinding machine can be divided into two kinds of rectangular table and circular table. The main parameters of the rectangular table surface grinding machine are the width and length of the table, and the main parameters of the circular table are the diameter of the table. According to the different shaft types, surface grinding machines can also be divided into horizontal shaft and vertical shaft grinding machines.
Product Description
Product Parameters
Mechanical Properties
Machine Structure: Crafted from high-grade cast iron, the main castings undergo meticulous annealing treatment to eradicate internal stress. This ensures unparalleled precision, robust rigidity, and extends the machine's longevity. The Slide Ways: Featuring left, right, and front double V slide ways coated with wear-resistant resin TI URCITE-B, and precision hand-scraped surfaces. This combination guarantees smooth, wear-resistant sliding, making it ideal for forming and precision grinding.
Cylindrical Straight Spindle: Equipped with a P4 ultra-precision angular roller bearing, this spindle ensures low noise, zero vibration, and high torque even at elevated speeds. Perfectly suited for heavy-duty cutting and diverse forming grinding applications.
Automatic Lubrication System: Utilizing a state-of-the-art circulating automatic lubrication system, this feature activates as soon as the main spindle starts. It provides forced lubrication to each screw and slide, significantly reducing slide wear. An oil mirror installed above the column allows continuous monitoring of lubrication conditions.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo, and other specific factors. For some standard items we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining a high level of quality. Additionally, our guiding principle is to providecustomers with superior quality, competitive pricing, and excellent service.
3.What's your main products of your company?
A: We specialize in an extensive range of machines, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What is your trade terms?
A :Ex-works, FOB, CFR, and CIF are all acceptable.
5.What's the Payment Terms ?
A: T/T, 30% initial payment when placing the order, and 70% balance payment before shipment.
6.What CNC system do you use?
A: We use FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN CNC systems. The choice depends on your specific needs.
7.How can I choose the most suitable machines?
A: Send us your product drawings and applications, and we will recommend the most suitable machines for your needs.
8.What kind of package do you offer?
A. Normally, we use plywood cases to ensure all goods are in good condition. Customized packaging is also available upon request.
9.Can your plant do OEM?
A:Yes, it is no problem. We can do both OEM and ODM for any customer. 10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond the warranty period, we will provide lifetime service for our machines.

---
