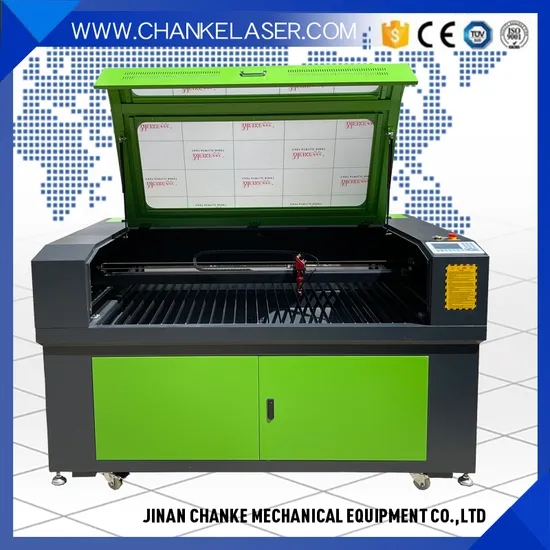

Ck1390 130W Reci Metal Nonmetal Wood Panle Acrylic MDF Plastic Paper Engraving Machinery CO2 Engraving CNC Laser Cutting Machine

Product Description

This 1300x900mm with 130w RECI (Z6) Laser tube 1.5mm sheet metal and nonmetal laser cutter machine is belongs the laser machine type-metal and nonmetal cutting machine .

So its meaning is: It can cut metal and aslo can cut on the nonemtal: like acylic/paper/wood board /fabic .. and other materiasl.

It aslo can engraving . so don't think it not engraving . most of my customer, ask me : Can it engraving ? ..... My answer is: Yes!!!.

I think you are interested in how many thickness it can cut on each materials. Now let me answer you:

1. ,Metal it can cut : 1.2 mm.
2. Acrylic it can cut: 25mm.
3. Wood board it can cut:10-15mm. You know our 90W RECI brand (Z2) Laser tube can cut : 5-8mm hard wood, like MDF...
4. By the way, it can engrave on the glass, but can't cut glsss. if you want to cut glass, please choose our CK6090 small cnc router or the special machine to cut glass, but I promise it can do a good work engraving on glass.

So if you have any questions, please contact me, My name is vera, I am vera glad to help you choose a good machine for you.
1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter
Specifications:
Features
Imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth.
Imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
We can supply different colour shapes for your need

Applicable materials
Non-metal materials such as double colour board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc

Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc

Model	1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter
Working area	130cm*90cm / 47in*35in (L*W)
Laser power	130W
Laser type	CO2 sealed laser tube,water-cooled
Engraving speed	25-24000mm/min
Cutting speed	50-5000mm/min
Power supply	220V±10% /50HZ , 110V±10%//60HZ
Min. shaping character	Letter 1.0 x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI,CDR
Software supported	CorelDraw, PhotoShop, AutoCAD
Laser Output Control	1-100% software setting
Highest Scanning Precision	2000DPI
Resolution ratio	<0.01mm
Location precision	<0.01mm
Working temperature	5°C-40°C
Operating humidity	5%-95%(without condensed water)
Equipment Dimension	1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
Net Weight	350KG
Optional parts	Up-down worktable, Red light pointer, Auto focus, Rotary device, Industry chiller, DSP off-line operation with USB flash

---
