Biomass Pellet Making Line Corn Straw Complete Wood Pellet Production Line

Product Description

Biomass Pellet Making Line Corn Straw Complete Wood Pellet Production Line
Product Description
Brief introduction of complete wood pellet production line wood pellet making line:
1.Wood pellet production line can press 6.8.10 mm diameter biomass fuel pellet and fertilizer pellets ,such as biomass waste from sawdust, rice husk, coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, plastic ect, such as fertilizer materials from animal manure ,plant waste etc . The length of final pellet can be adjusted.
2.This line contains Drying process, Pelletizing process, Cooling process, Screening pellet process and Packing process, low invest and high working efficiency.
3.Wood Pellet production line is mainly air conveying materials way, existing far less dust than belt conveyor or bucket elevator conveying way, saving much place and price, also existing less dust.
1.Wood Chipper

1)It is an ideal equipment of processing wood materials like wood branch, round logs, square blocks and wood pieces into wood chips with settled dimensions.
2)Two feeding type: top-feeding or side-feeding by belt conveyor-changeable speed of feeding logs.
3)The durable feeding conveyor solves the problem of the large wood feeding.
2.Hammer Mill&Crusher
1)this kind of hammer mill is widely used in farm,wood factory,etc.
2)The raw materials can be crushed into straw particles,whose diameter is 3-8mm.
3)The machine could be driven by electric motor or diesel engine.

3.Dryer
1)Drying is important before briquetting process. It is necessary o control the moisture of material at 8-12% exactly, in order to get superior quality of biomass briquettes with high density
2)The selection of dryer model depends on the original moisture content of raw materials.
3)Wood dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalk etc.Raw materials size:<1mm&<5mm
4.Pellet Machine
Small Capacity Wood Pellet Machine

4.Pellet Machine
Large Capacity Wood Pellet Machine
5.Cooler
1)Adopt counter-flow cooling theory, the pellets cooling fully and evenly.
2)Adopt unique vibrate materials discharging institution, discharging evenly, no residue.
3)The pellets after cooling,the temperature not higher room temperature 3-5 degrees. 4)Unique arc-shaped cooling bin, no cooling dead corner.

6.Packing
1)Completely digital working; Pneumatic controlling
2)Convenient and Simple operation, low labor intensity
3)Muti- weighing controller
4)Automatic falling correction; Precise running by Sensor and Meter
5)Various package sizes
6)Heat sealer/stitching for bag sealing
7)Easy control(one-touch-type)

Raw Material and Final Product

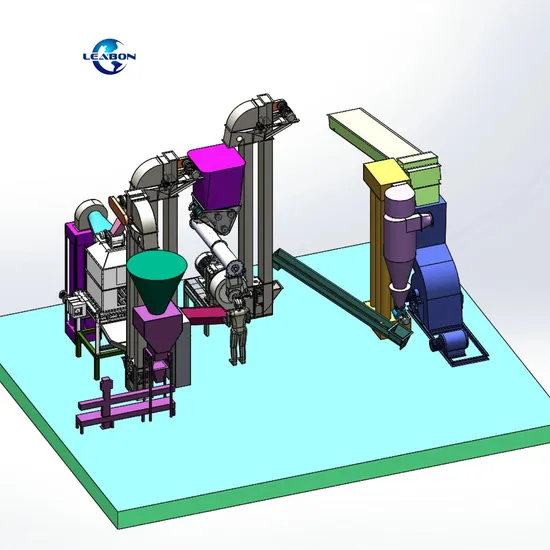

Production Line Display
Small production line case
Small production line is widely used in households.Mainly applied to different grains such as corn, wheat, sorghum, and any type of agro-forestry waste:Crops straw, husks, vines, wood chips, etc. (Energy-saving & Environment-protecting).Size range of making wood pellets: 6, 8, 10, 12mm
Large production line case
Large production lines are mainly used in factories,chemical plants,etc.It has the advantage of high output, low consumption and noise, better stability and lower fault rates, Fatigue resistance is strong, continuous production, economy and durability.
Packaging & Shipping
Company Profile
FAQ

Q1. What capacity would your need? -----The Capacity Range of Wood Pellet Machine: 0.2-0.3T/H;0.5-0.7T/H; 0.8-1.2T/H; 1-1.3T/H;1.7-2.2T/H; 2-2.5T/H;2.5-3.5T/H;4-5.5T/H.

Q2.What is your raw material? -----suitable for different raw material such as wood/logs, sawdust, straw,other biomass sources .

Q3.What is your raw material size? ----Best size for pressing high quality pellets is 3mm-5mm.

Q4.What is the moisture of your raw material? ----Better to be 10-15%.( If large than this, then we will recommend your Dryer Machine)

Q5.Final Pellets Size? ----We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)
