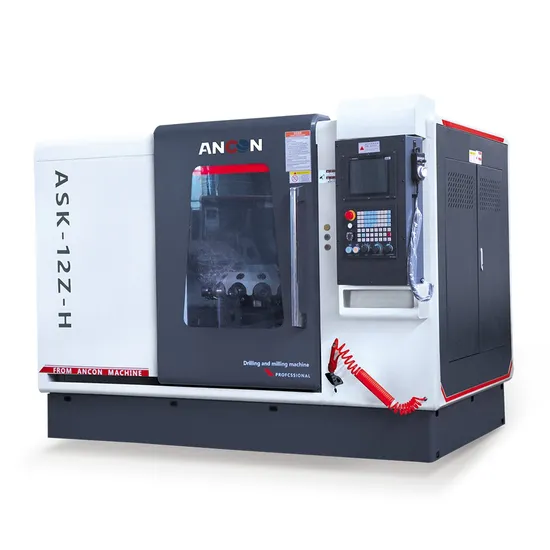

CNC Turret Twelve Spindles Compound Machine Drilling Tapping and Milling

Product Description

Product Description

Item	Unit	Parameter
Maximum reaming capacity	Drilling diameter	mm	φ50
Maximum tapping capacity	Tapping diameter	mm	M45
Spindle number	Spindle numbers	unit	8/12
Processing range	Stroke distance of X/Y/Z axis	mm	450/250/400
Workbench	Workbench length and width	mm	150×85
Spindle	Spindle form	__	ER40
	Rotating speed	r/min	10-3000
	Spindle motor power	kw	5.5
	Motor power of X/Y/Z axis	kw	1.5/2.0/2.0
Precision	Positioning accuracy	mm	±0.01/300
	Repested precision	mm	±0.01
Machine specifications	Machine dimensions (LxWxH)	mm	2380×1620×1850
	Machine weight	kg	3000
Feed sped	Maximum fast feed rate	m/min	20
	Maximum cutting feed rate	m/min	12
Control system	Taiwan's syntec system (optional)

Packaging & Shipping
Company Profile
Delin Intelligent Technology Co., Ltd
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing
machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting
machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings, plumbing fittings,
sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality,
reasonable prices and stylish designs.

---
