Spiral Paper Core Rewind Machine

Product Description

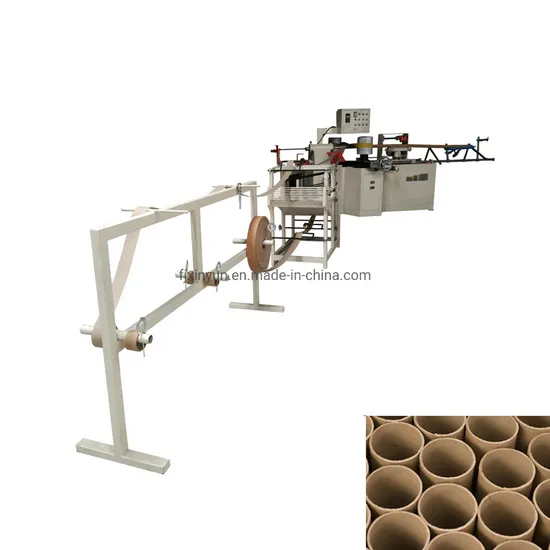

XY-SD-B Automatic Spiral Winding Paper Tube Making Machine
Function & features:
1.Frequency conversion timing,high precision of pipe.
2.Automatically withdraw knife or insert knife to cut pipe without stopping machine.
3.Make other size of core is very easy to change the spare parts.
4.Not hot and dry during the forming of product, the consumption of equipment is less.
5.The composed parts are of high rigidity,equipment is stable without shake when rolling core with high speed.
6.The finished pipes are used in the toilet paper,plastic firm and textile,lamps etc.

Function & features:
1. Frequency conversion timing, high precision of pipe.
2. Automatically withdraw knife or insert knife to cut pipe without stopping machine.
3. Make other size of core (diameter: 100-162 mm) is very easy to change the spare parts.
4. Not hot and dry during the forming of product, the consumption of equipment is less.
5. The composed parts are of high rigidity, equipment is stable without shake when rolling core with high speed.
6. The finished pipes are used in the toilet paper, plastic firm and textile, lamps etc.
Technology Parameter:

Production Speed	15~20 m/min
Roll Core diameter	40.6mm, 42mm, 45mm and 83 mm (Customize)
Roll core wall's thickness	1-10mm(2-10ply)
Installed power	8.5Kw (380V 50Hz)
Overall Size of Equipment (L× W× H)	3050× 850× 1650mm
Weight of Equipment	1600kg

---
