TM Series 330ton Injection Molding Machine Reasonable Price Plastic Machinery

Product Description

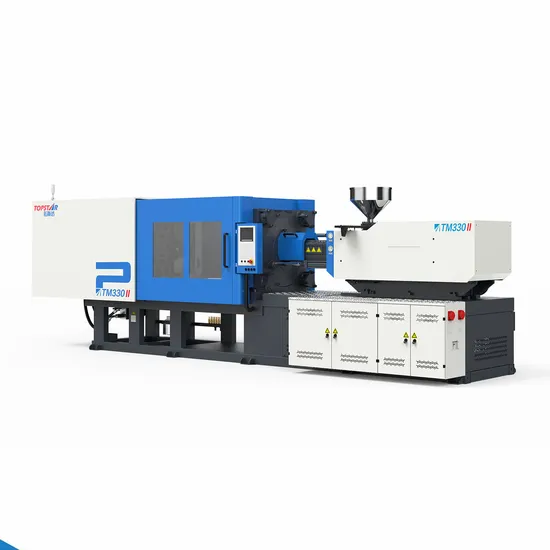

TM Series 330ton Injection Molding Machine Reasonable Price Plastic Machinery

Product Description:
The TM series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes the machine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small deformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. Standard screw: high performance nitride steel, durable and efficient, wide application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TM330
Screw Diamete	mm	60	65	70
Screw L/D Ratio	L/D	21.7	20.0	18.6
Screw Stroke	mm	280	280	280
Shot Volume	cm3	792	929	1078
Shot Weight(ps)	g	720	846	981
	oz	25.4	29.8	34.5
Injection Pressure	kgf/cm3	2188	1864	1607
Injection Rate	cm3/s	273	320	371
Injection Rate	mm/s	96	96	96
Screw Speed	rpm	170
Nozzle Contact Force	t	9.1
Nozzle Stroke	mm	450
CLAMPING UNIT	UNITS	TM330
Clamping Force	t	330
Opening Stroke	mm	660
Platen size(H×V)	mm	970*970
Space Between Tie Bars(H×V)	mm	680*680
Mlould Thickness (Min)	mm	225
Mlould Thickness (Max)	mm	700
Max. Daylight	mm	1360
Ejector Force	t	6.7
Ejector Stroke	mm	160
Locating Ring	mm	125
POWER/HEATING UNIT	UNITS	TM330
System Pressure	kgf/cm3	175
Pump Power	kw	36
Heating Power	kw	21.3
Number of Temp Control Zones	-	4+1
0THERS	UNITS	TM330
Machine Dimensions(LxWxH)	m	7.29*1.86*2.3
Oil Tank Capacity	L	400
Machine Weight	t	11.1
Platen Dimensions
Platen Dimensions

Note: The company reserves the right to modify the technical parameters without prior notice.

---
