Aceretech Fully Automatic Pet Granules Making Machine for PP/PE/ABS/PS/PC Regrinds Recycling

Product Description

Aceretech Fully Automatic Pet Granules Making Machine for PP/PE/ABS/PS/PC Regrinds Recycling
Product Description
The recycling process of waste plastics is: recycling→crushing→cleaning→drying→granulation→extrusion molding (new products), and the granulation production line occupies an important part of the plastic recycling process.
This set of production lines has been upgraded many times in practice, and has the characteristics of large output, low loss, low failure rate, easy operation, and low cost. The granulation production line has a variety of heating methods. The heating method can be designed according to the customer's production capacity and cost, and according to the customer's materials and output, provide customers with high-quality and reasonable production lines.
Product Parameters

Model	125	150	180	210	240
Spindle diameter(mm)	125	145	175
Spindle speed(r/min)	50-70	40-60	40-60	40-60	40-60
Main motor power( KW)	22	30	37	45	55
Electromagnetic power (KW)	60	80	100	120	160
Overall dimensions(M)	2.6*0.7*0.7	3*0.7*0.8	3.2*0.7*0.8	3.5*0.8*0.9	3.8*0.9*1
Output (kg/h)	90-120	100-150	150-200	200-250	250*300

Application
Application of the plastic pellets production line:
PE film/LDPE film (greenhouse film, convenient bag, garbage film, beverage bottle, liner bag, etc.), PP woven bag/ton bag/space bag (old woven bag, packing bag, strapping rope, etc.), paper mill material, HDPE/PP/ABS and other hard materials, PVC material and other waste plastics.
Output: 150-600KG/H (due to the different melting points and volumes of each material, please consult for specific output)

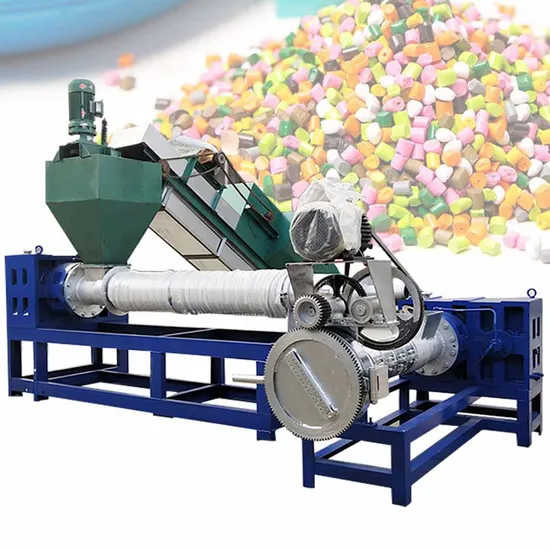

Machine pictures display
Features of the plastic pellets production line:
1. All recycled materials do not need to be dried or dried after classification, crushing and cleaning, and can be produced. They can be used both wet and dry.
2. From raw material crushing, cleaning, feeding to extruder plasticization and pelletizing, all are automated.
3. Make full use of the high-pressure friction uninterrupted heating system, automatically heat the production, avoid continuous heating, and save electricity and energy.
4. Use a split fully automatic power distribution system to ensure the safe and normal operation of the motor.
