Semi Automatic Liquid Water Drinking Spice Oil Soy Sauce Milk Vinegar Jam Jelly Shampoo Cup Bottle Filling Packing Machine

Product Description

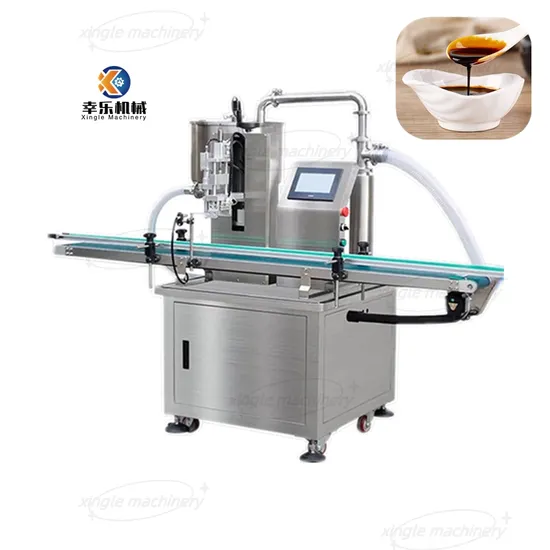

Product Description XL-CLB01 single head gear pump filling machine
A gear pump is also called a positive displacement device, which is like a piston in a cylinder. When one tooth enters the fluid space of another tooth, because the liquid is incompressible, the liquid and the tooth cannot occupy the same space at the same time. In this way, the liquid is mechanically squeezed out. Due to the continuous meshing of the teeth, this phenomenon occurs continuously, thus providing a continuous displacement at the outlet of the pump. The amount discharged is the same for each revolution of the pump. As the drive shaft rotates continuously, the pump discharges the fluid continuously. The flow rate of the pump is directly related to the speed of the pump. Equipped with a conveying line, bottle feeding, positioning, filling, and bottle discharge are all automatically controlled by PLC, which meets GMP standards. It is suitable for liquid filling in food, daily chemicals, fine chemicals. 1: Touch screen operation interface
2: Filling accuracy can reach within 1%
3: No bottle, no filling
4: Design different positioning devices according to the actual situation of the bottle
5: The equipment is easy to clean, can be disassembled without tools, and can also be cleaned online or sterilized at high temperature
6: PLC programmable control, using Siemens of Germany
7: Pneumatic components are made of Taiwan AirTac
8: The equipment shell is made of SUS 304# stainless steel
9: Equipped with a glass protective cover that meets hygiene and safety standards Product Parameters

Model	XL-CLB01
Filling capacity (L)	50ml -20L (customizable)
Filling speed (BPM)	1-3 bottles/minute
Power supply (VAC)	220V
Motor power (KW)	1.5
Air consumption (MIN)	4KGS×30LITER
Dimensions(mm)	2000x900x1800
Weight(KG)	360
4 liters	Around 2000 per hour
Dimension	height 1530*width 820*length 1800mm
Remark:Customized machine do not accept returns due to their special nature.
