Heavy Duty Electric Cable Pulling Windlass Winch

US$100.00-400.00 1 Piece (MOQ)

Basic Info.

Model NO.

NVT12500

Pull Direction

Backward

Electric Winch Model

ATV

Working Voltage of Electric Winch

Low Voltage

Brand

Deso

Applicable Environment

Mountain Road

Certification

TUV, GS, ITS, CE

Payment

T/T L/C

Delivery Time

20-40days

Transport Package

Carton or Wooden Box

Specification

12000lbs

Trademark

Deso

Origin

China Mainland

HS Code

84253190

Production Capacity

2000PCS Per Month

Product Description

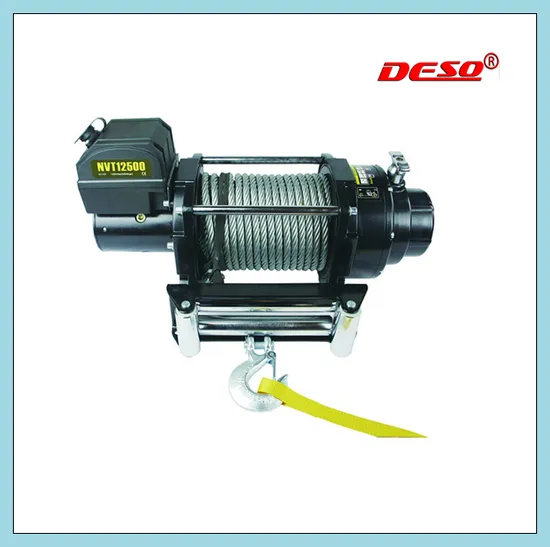

Auto Electric Wire Rope Winch with 12000lbs Pulling Capacity

NVT12500

Rated line pull: 12000lbs (5454kgs) single line

Motor (Series wound): DC 12V with 5.6hp/4.2kW output

Gear train: 4 stage gear

Gear ratio: 516:1

Clutch: Pull and Turn

Braking action: Automatic in the ratchet wheel

Fairlead: 4-way roller fairlead

Wire rope: 13/32"×95' (10.3mm×29m)

Drum size: 3.46"×8.66" (88mm×220mm)

Dimensions: 24.1"×8.46"×11.39" (611mm×215mm×288mm)

Bolt pattern: 10"×4.5" (254mm×114.3mm)

Net Weight: 1501bs (68kgs)

Line speed and motor current (first layer)
Line pull(Lbs/Kgs)	Line speed(FPM/MPM)	Motor current(Amps)
0/0	16.1/4.9	70
6000/2724	8.5/2.6	150
8000/3632	6.6/2.0	240
10000/4540	4.9/1.5	290
12000/5454	3.3/1.0	380
Line pull and cable capacity
Layer of cable	Rated line pull per layer(Lbs/Kgs)	Cable capacity per layer(Ft/M)

1	12000/5454	21.0/6.4
2	9900/4495	46.9/14.3
3	8400/3814	77.1/23.5
4	7300/3314	95.1/29.0

Packing & Delivery
If you have any questions or need more details, please feel free to contact us, we are more than pleased to do any help. Thanks!
