grinder machines MQ8260Cx16/18 crankshaft grinding machine price

Product Description

Product Description

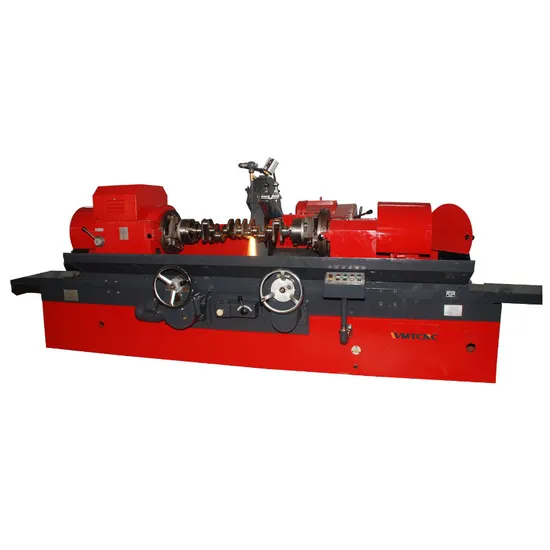

MQ8260C Crankshaft Grinding Machine
General Description:
The crankshaft grinding machine MQ8260C is modified on the base of the MQ8260A and intended for use in automobile, tractor, diesel engine works and their repairing shops to grind crankshaft journals and crankshaft arms.
Structure Features:
1. Work spindle speed adjustable between 3 speeds by simply changing belts;
2. Cross swallow-tailed chucks used in workstock and tailstock;
3. Friction clutch used in the headstock transmission chain for easy adjustment;
4. Single layer table, with an oblique angle of 10 degree;
5. Table traverse operated both by hand and by power;
6. The wheel spindle being of 80mm in diameter has good rigidity and strength;
7. The rolling guideways employed for movement of wheel carriage;
8. Lubrication of table and wheel carriage operated automatically by oil pump circulation.
MQ8260A Appearance:
1. Oblique table angle of 10 degree;
2. Air cushion
Equipped with air cushion, the tailstock can be moved easily.

Specification		Model	MQ8260Cx16	MQ8260Cx18
		type	600x1600	600x1800
Max. work swing diameter		mm	600	600
Max. work length		mm	1600	1800
Max. swing over table		mm	600	600
Work diameter ground with steady rest		mm	30-110	30-110
Throw of crankshaft		mm	110	110
Max. work length ground: in 3 jaw chuck		mm	1320	1520
Between centers		mm	1600	1800
Max. work weight		kg	120	120
Headstock center height		mm	300	300
Headstock work speed		r/min	25,45,95	25,45,95
Wheel head Max.cross movement		mm	185	185
Wheel head rapid approach & withdraw		mm	100	100
Wheel feed per turn of cross feed hand wheel		mm	1	1
Wheel head per grad of cross feed hand wheel		mm	0.005	0.005
Grinding wheel spindle speed		r/min	740,890	740,890
Grinding wheel peripheral speed		m/sec.	25.6-35	25.6-35
Grinding wheel size(O.D. x width x bore)		mm	900x32x305	900x32x305
Table traverse of per turn hand wheel	Coarse	mm	5.88	5.88
	Fine	mm	1.68	1.68
Table sway: taper (18 /100)			/	/
Table sway per grad of scale(taper 1: 50)			/	/
Overall capacity of motors		kw	9.82	9.82
Overall dimensions(L* W * H)		mm	4116x2037x1584	4116x2037x1584
Weight		kg	6000	6000

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
