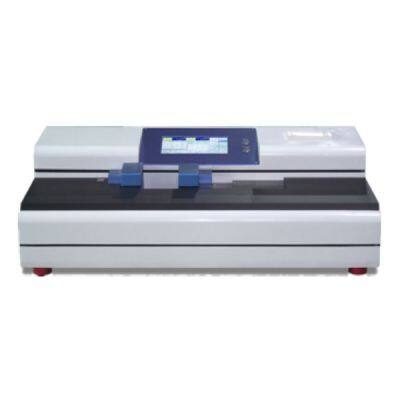

TST-H Horizontal Tensile Tester
Application
TST-H Horizontal Tensile Tester is a constant-rate-of elongation equipment that is used for the determination of the tensile strength, stretch at maximum force and tensile energy absorption, tensile stiffness of paper, paperboard, tissue paper and tissue products. It also calculates the tensile index and the tensile energy absorption index.
Test Principle
A test piece of given dimensions, is stretched to break at a constant rate of elongation using TST-H Horizontal Tensile Tester that measures and records the tensile force as a function of the elongation of the test piece.
From the recorded data, the tensile strength, the corresponding stretch at maximum force and the tensile energy absorption can be calculated.
Benefits
1. Single-column structure precision ball screw for stable transmission and higher testing accuracy.
2. 7-inch touchscreen operation, User-friendly
3. Wet tensile strength water tank meets wet testing (Optional)
4. Computer Connectivity for control and data storage (optional)
5. Modular thermal printer enables instant printing of test reports
Standards
GB/T12914, GB/T 24328.3, GB/T 24328.4, GB/T 24328.5, QB/T5560, ISO 1924-1, ISO 1924-2, ISO 1924-3, ISO 12625-4, ISO 12625-5, TAPPI T494
Main Parameters
Measurement range 30N, 500N or as required
Elongation measurement range 45-260mm
Stretching speed: (1~500) mm/min
Return speed 100mm/min
Clamp spacing 1~250mm
Test speed accuracy (1~10) mm/min: ±0.1mm/min
sampling frequency 400 Times/S
Accuracy ≤±0.5%
Force accuracy ±0.1% (20~100%FS)
Deformation resolution ≤0.1mm
Sample Clamping pneumatic
Clamping pressure 0.2-0.7Mpa (adjustable)
Sample size 1-25mm
Human-machine interface 7 in touch screen
Printout embedded thermal printer.
Power AC 220V 50Hz
Dimension 650*500*400mm
>>
