FM Approved Alarm Check Valves DN150

Product Description

Product Description
FM Approved Alarm Check Valves DN150

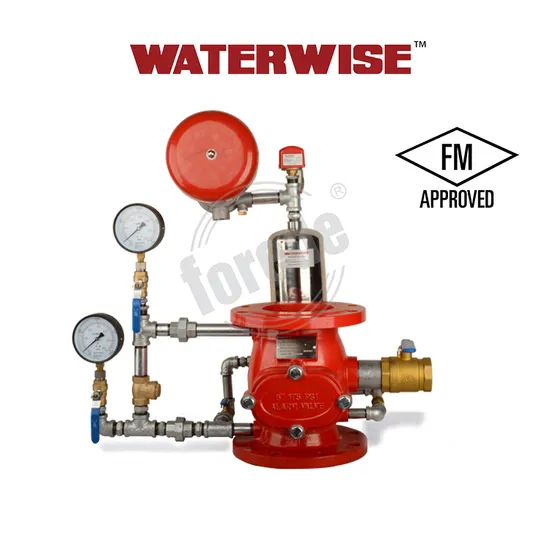

Model WAV-1 Alarm Check Valve is a wet pipe sprinkler system water supply check valve that makes possible the installation of sprinkler systems in buildings not subject to freezing temperatures. It is designed so that water pressure in the piping system will hold back water pressure at the valve until a significant flow of water occurs such as a sprinkler is activated.The Alarm Check Valve serves as a check valve by trapping pressurized water above the clapper and preventing reverse flow from sprinkler piping.The valve is trimmed with a water bypass line. The bypass line allows pressure surges to enter the system and to be trapped above the alarm check valve's clapper without the clapper lifting and causing false alarms.
Product Parameters

Body Material	Ductile Iron, QT450
Seat Ring Material	Silicon Brass
O-ring Material	Rubber NBR
Size	DN100 or DN150
Connection	Flange
Flange Standard	Class 150 ANSI B16.1
Installation	Vertical
Valve Type	Alarm Check Valve
Working Pressure	1.2Mpa
Certificate	FM Approval

Certifications
Detailed Photos
Packing
Workshop

FAQ
Q1:What can you buy from us?
Fire Sprinkler system,Foam system,Fire Monitor,Fire Nozzle,Fire Valves,Fire Hydrants
Q2:Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q3:How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q4:What is your term and payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q5:Do you offer guarantee for the products?
Yes, we offer 1 year warranty to our products.
Q6:How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q7:How long does it take to produce the product?
Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q8:What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

---
