PLC controlled automatic precsion high speed wire mesh weaving machine

Product Details

Product Description

Product Description
lanyingmachine
Hebei Lanying Technology Co., LTD is a technology-oriented enterprise that is composed of mechanical and automation professionals, with strong R&D capacity. We have been engaged in the manufacturing of metal wire mesh weaving looms since 20 years ago. We commit to improving the automation and efficiency of the metal wire mesh weaving. From self-developed special CNC system and algorithm for the metal wire mesh weaving loom to the fully CNC weaving loom and the fully CNC warping machine. We not only manufacture general use wire mesh weaving machine but also provide customized machines and effective overall solutions according to customer requirements.
Our products mainly include four series: SG100 series, SG130 series, SG160 heavy-duty series, SG180 super heavy-duty series which cover all-round weaving range from light and thin fabrics with a diameter of 0.016mm (not limited to) to heavy fabrics with a diameter of 2.1mm (not limited to). With reliable quality and after-sales services, our products not only win domestic customers trust, but also export to France, Japan, South Korea, India, Russia, Taiwan and other countries and regions.
Lanying technology, which is progressing with the times, is committed to researching and developing high-precision and high performance looms. We will satisfy customers' arbitrary needs for metal wire weaving fabrics with our best products!
Lanying technology, which is progressing with the times, is committed to researching and developing high-precision and high performance looms. We will satisfy customers' arbitrary needs for metal wire weaving fabrics with our best products!

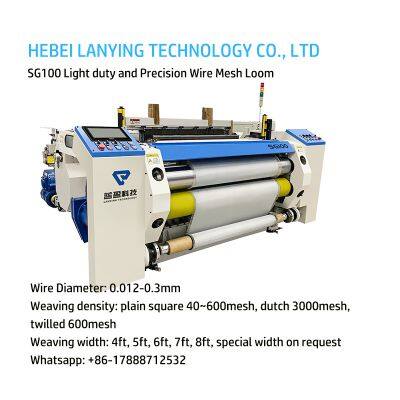

Product Series	SG100 Series	SG130 Series	SG160 Series	SG180 Series
Standard weaving width (Special width on request)	1300mm 1600mm 2000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm 4000mm
Wire diameter range	0.016-0.3mm	0.06-0.45mm	0.1-0.7mm	0.2-2.1mm
Plain weave square hole (mesh/inch)	40-400	20-260	10-100	6-60
Twill weave (mesh/inch)	≤600	≤400	≤350	≤260
Wire material	Stainless steel, iron, copper, aluminum, platinum, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum, alloy, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum,alloy, nickel, polyester	Stainless steel, iron,copper, aluminum, alloy, nickel, polyester
Speed (the actual speed depends on the weaving width and specs)	100 rpm （max 120rpm）	100 rpm （max120rpm）	50-70 rpm	35-50 rpm
Basic tension	15000 N/m	20000 N/m	40000 N/m	60000 N/m

---
