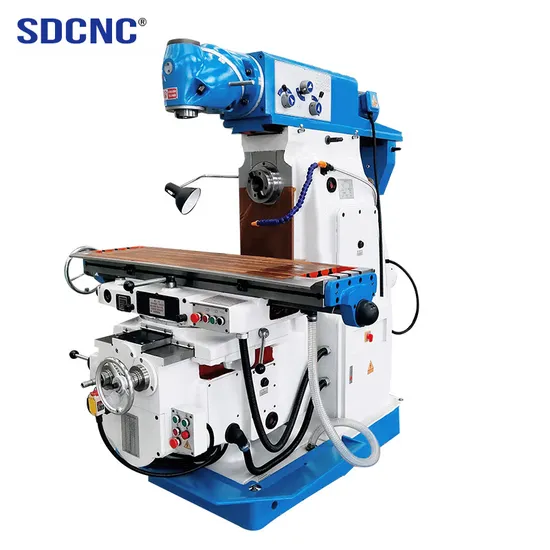

X6232 Milling Cutter Machine Vertical Turret Tools Center Router CNC Milling Machine

Product Description

Product Description

The main performance characteristics: 1.It can realize vertical and horizontal milling two processing function;
2.The two grade rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing mold and shell;
4.Table X,Y axis motorized feed Product Parameters

Specifications	Units	X6232
Spindle taper		7:24 ISO40
Distance from spindle nose to table surface	mm	120-490
Distance from spindle axis to column surface	mm	0-500
Spindle speed range(steps)	rpm	35-1660
Vertical milling head rotary angle	°	360
Table size	mm	1250x250
Table travel	mm	600x320x370
Table motorized feed speed (longitudinal /cross)	Mm/min	(8 steps)22-555 (fast 810)
Table vertical lifting speed	Mm/min	560
T slot		3-14-70
Main motor power	KW	2.2
Motorized feed motor power	KW	0.75
Lifting motor power	KW	0.75
Coolant pump motor power	W	90
Coolant pump liquid	L/min	25
Overall dimensions	mm	1700x1560x1750
N.W./G.W.	Kg	1320/1420

Company Profile
FAQ
Q: WHO ARE WE?
A: WE ARE A PROFESSIONAL MACHINE TOOL MANUFACTURER.
WE NOT ONLY SELL OUR MACHINES, BUT ALSO PROVIDE TECHNICAL SUPPORT.
Q: HOW DO WE ENSURE QUALITY?
A: EVERY NEW MACHINE HAS T0 G0 THROUGH STRICT TESTING AND CONF IRMATION FIRST. INSPECTION OF EACH PART INSPECTION AND ADJUSTMENT 0F EMPTY LINE AFTER ASSEMBLY
Q: WHAT CAN YOU BUY FROM US?
A: LATHES, CNC LATHES, CNC PIPE THREAD LATHES, CNC VERTICAL LATHE,
CNC MACHINE T00LS, ORDINARY PIPE THREAD LATHES, MACHINING CENTERS,
H0BBING MACHINES, DRILL ING MACHINES, MILLING MACHINES,GRINDING MACHINES,SAWING MACHINE, ETC.. .
Q:WHY SHOULD YOU BUY FROM US INSTEAD 0F OTHER SUPPLIERS?
A:MANY YEARS 0F MACHINE T00L PRODUCTION IN RESEARCH AND DEVELOPMENT
EXPERIENCE,G00D EXPER IENCE,G00D PERFORMANCE, GOOD QUALITY,LET USERS BUY DON'T WORRY, USE IT AT EASE.

---
