4 Cavities Semiautomatic Blow Moulding Machine/Blow Moulding Machine/Plastic Injection Molding Machine//Water Machine/Plastic Machinery/Plastic Machine with CE

Product Description

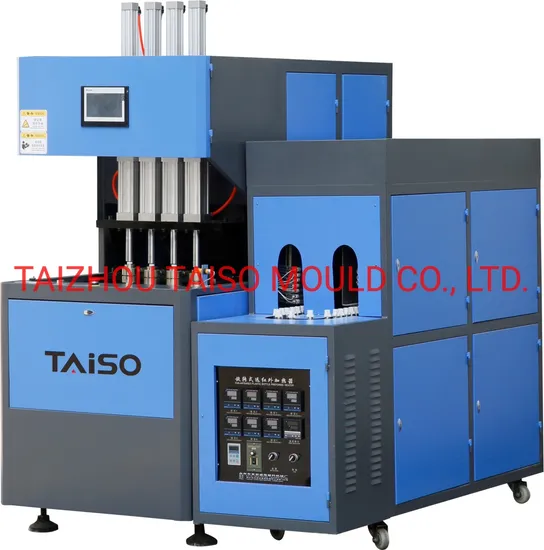

TS-S4-1.5L 4 cavities semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely TS-S4-1.5L is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Features
1. Produce bottle from 0.1L to 1.5L(4 cavities)
2. Output capacity up to 2000 bottles/hour for 0.6L using four -caviti blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.

Model	TS-S4-1.5L (1 Blower & 1 Heater)
Max. Volume	1.5L
Output	1600-2000BPH
Number of Cavities	4 Cavities
Neck diameter	18-38mm
Max. diameter	105mm
Max. Bottle height	330mm
Mold thickness	70-230mm
Clamping stroke	190mm
Rated power	25kw
Power consumption	10-15kw
Blower size	1620*820*1950mm
Heater size	2160*600*1350mm
Weight	1200kgs

---
