Product Details
Product Description
Product Description
Product Description

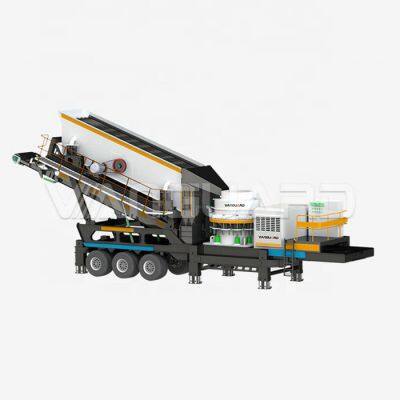

The complete set of wheel-type mobile crushing plant is composed of feeding, crushing, screening, conveying and other systems, which has high flexibility and can meet the needs of different customers to the greatest extent. The matching use of Vanguard Machinery non-power semi-mobile tractor can enable the mobile vehicle to arbitrarily go to different positions in the work place and quickly be ready to run. It is more convenient to move and close, easy to transport, maximizing the effective operation time of the equipment.
PRODUCT PARAMETERS
Model
|
Crusher Model
|
Vibrating Screen
|
Number of Axles
|
Capacity (t/h)
| Dimension(L*W*H)
(mm)
|
VPCS75
| CS75
| 3YA1848
| 3
| 180-270
| 18000×3900×6900
|
VPCS160
| CS160
| 3YA2160
| 3
| 132-253
| 18000×4200×6900
|
VPCH200
| CH820
| 3YA1848
| 2
| 70-160
| 12600×3000×4500
|
VPCH300
| CH830
| 3YA1860
| 3
| 90-285
| 13800×3000×4500
|
VPC110
| CSV110
| YA1848
| 2
| 50-235
| 13800x3000x4400
|
VPC160
| CSV160
| YA1860
| 3
| 88-390
| 13800x3000x4400
|
VPC200
| CSV200
| YA2160
| 3
| 122-420
| 14500x3000x4500
|
VPCP200
| CP200
| YA1860
| 3
| 90-310
| 14200x3000x4500
|
VPCP300
| CP300
| YA2160
| 3
| 135-430
| 16500x3200x4600
|
Special Design of different models of the mobile crushing plant will be available upon request.
PRODUCT ADVANTAGES
Customized overall vehicle chassis
The high vehicle chassis and the small turning radius which is not only convenient for ordinary roads but also adaptable to the rugged road.
Intelligent Integrated Control System
User- friendly control panel with one-click start-up for easy operation.
Self- loading Belt Conveyor
The retractable self- loading belt conveyor and the extended unit can directly deliver the material to a specific transfer belt conveyor.
Compact and Reasonable Unit Layout
The feeder, belt conveyor and vibrating screen integrated with the crusher optimize the space where the facilities are arranged in the site, and expand the space for material stacking and transportation.
PRODUCT APPLICATION
Processed Material:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc
CUSTOMERS' SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
Contact Information
Contact Us:
Email: sales@vanguardtec.com
Tel: +86 15690852006(WhatsApp/Wechat)
Website:
24/7 online services. Get free proposal and best price Now!
>>
