Product Details
Product Description
Product Description

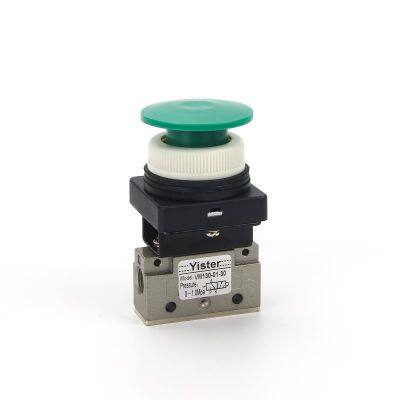

3 way green/yellow/black/red mushroom-head push button type spring return air mechanical valve VM130-01-30
Order code
Symbol
Technical parameter
Model
| VM130-01-30 Button mechanical valves
|
Head color
| Red/Green/Yellow/Black
|
Fluid
| Air,Inert gas
|
Pressure range
| 0-1.0 Mpa
|
Proof pressure
| 1.5Mpa
|
temperature
| -5 to 60℃
|
Cv value
| 2.5mm2
|
Port size
| G1/8:(Side ported) M5*0.8(Bottom ported)
|
Lubrication
| Not required
|
Dimension
Feature
1)Working media: 40um filtered air
2)Joint pipe bore: G1/4 3/8 1/2
3) Operating pressure: 0-0.8Mpa
4) Operating temperature: 0-60oC
5)Operation type:Spring return push button type pneumatic mechanical valve
FAQ
1. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
2.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
3 Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
4.Q:Which colors could be chosen for push-button type pneumatic manual mechanical valve ?
A:Head color:Red,Green,Black ,Yellow
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The company mainly produces and sells: PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, air control valve, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
>>
