Wide Range of Wire Diameters Multi-Purpose PC /CNC Control Coil Winding Machine

Product Description

Specificaton

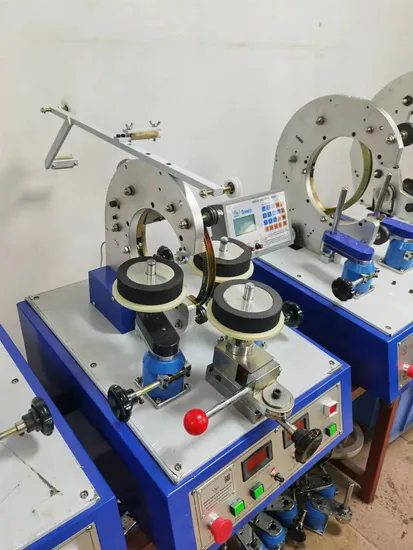

GWLA-0319 Multi-purpose PC /CNC control Coil Winding Machine

Equipment model	GWLA-0319
Winding mode	Gear type
Finally complete the outside diameter	60-200
Minimum finished inside diameter	25
Maximum completion height	80
Wire size	0.5-1.6
Diameter of magazine	250
Width of magazine	3-8
Depth of storage ring	10/12/16
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x750

Features:
1.Microcomputer program controller, simple operation.
2.Data input memory 50 specifications, each specification can be preset 20 running programs.
3.Double frequency conversion proportional drive, can choose automatic operation or pedal speed control operation.
4.Can be stepless speed regulation, according to different product process requirements set the appropriate winding speed.
Advantage:
1.Complete range of articles, large range of wire diameter, Multipurpose
2.Good compatibility, parts are interchangeable
3.High stability, part quality guarantee
4.High production efficiency, no wire breaking at high speed winding
5.Easy to operate, High learnability Detailed Photos

WINDING MACHINE
GWL-6200 Slider type toroidal transformer coil winding machine

Equipment model	GWL-6200
Winding mode	Gear type
Finally complete the outside diameter	60-120
Minimum finished inside diameter	35
Maximum completion height	80
Suitable winding diameter range	0.2-0.7
Diameter of wire storage ring	195
Width of storage ring	9-12
Maximum speed	800 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x700
Weight	90KG

GWL-5200 Slider type high speed coil winding machine for toroidal transformer

Wire diameter	0.15-0.7	Max.winding speed	800rpm
Max.final coil.O.D	φ60/120	Magazine Diameter	195
Min.final coil.I.D	Φ30	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	500×600×700
Magazine width	3-6	Weight	90kg

GWL-0519 Gear type Current Transformer Winding Machine

Wire diameter	0.7-2.0mm	Max.winding speed	200rpm
Max.final coil.O.D	φ60-250mm	Magazine width	4-18mm (optional) standard 8mm
Min.final coil.I.D	Φ40	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	90	Mechanical dimensions	650*500*700mm
Controller storage capacity Programs	50*20 set	Wight	120kg

GWL-815 Gear type high quality coil winding machine for toroidal transformer

Wire diameter	0.3-1.6mm	Max.winding speed	300rpm
Max.final coil.O.D	Φ50-200mm	Magazine width	3-10mm (optional)
Min.final coil.I.D	Φ20mm	Supply voltage	AC 220V(50Hz)
Max.final coil height	60mm	Mechanical dimensions	650*500*700mm
Controller storage capacity Programs	50*20 set	Wight	100kg

GWL-077 Middle speed toroidal transformer coil winding machine

Equipment model	GWL-077
Winding mode	Gear type
Finally complete the outside diameter	80-250
Minimum finished inside diameter	40
Maximum completion height	150
Suitable winding diameter range	0.8-2.8
Diameter of wire storage ring	1070
Width of magazine	8-20mm standard:12mm
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	650*500*750mm
Weight	130KG

GWL-0619 Big gear high stability floor type winding machine for inductor

Equipment model	GWL-0619
Winding mode	Gear type
Max.Final outer diameter	130-450
Mini final inside diameter	70
Max Final height	220
Wire diameter	1.0-4.0
Perimeter of magazine	1200
Width of magazine	10-30(Optional)
Max winding speed	120 rpm/min

GWLJ-0519 Gear type Rectangle transformer coil winding machine

Wire size	0.7-2.0mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm (Please note: 60-300mm does not mean such a wide range directly, but refers to adjustment by adjusting some installed parts. If the maximum 300mm is selected, products smaller than 150mm cannot be processed; on the contrary, if the product is selected to be suitable for small products, it cannot be processed. Products larger than 150mm.)
Minimum the inner length/width	45mm(Length is greater than 45mm Width is greater than 45mm)
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

GWLA-0319F Gear type Rectangle transformer coil winding machine

Wire size	0.5-1.6mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm
Minimum the inner length/width	45mm
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

TAPING MACHINE
GWL-500T Toroidal taping wrapping machine with film

Suitable winding band width	10-12-15-20mm
Finally completed outer diameter	80-250mm
Minimum finished inner diameter	40mm (with 10mm storage ring installed)
Maximum finished height	130mm
Width of magazine	10-20mm (optional)
Magazine circumference	1070mm
Maximum winding speed	230 rpm
Presetable programs	50*20 groups (1000 running programs)
Overall machine weight	100kg

GWL-500F High stability floor type toroidal wrapping machine for transformer

Suitable winding band width	10-12-15-20mm
Finally completed outer diameter	120-320mm
Minimum finished inner diameter	40mm (with 10mm storage ring installed)
Maximum finished height	130mm
Width of magazine	10-20mm (optional)
Magazine circumference	1070mm
Maximum winding speed	230 rpm
Presetable programs	50*20 groups (1000 running programs)
Overall machine weight	138kg

GWTMLJ-0218 Gear type Rectangle transformer coil tapping machine

Tape width	8mm/10mm/12mm/15mm/20mm(optional)
Finish the outer length/width	60-300mm (Please note: 60-300mm does not mean such a wide range directly, but refers to adjustment by adjusting some installed parts. If the maximum 300mm is selected, products smaller than 150mm cannot be processed; on the contrary, if the product is selected to be suitable for small products, it cannot be processed. Products larger than 150mm.)
Minimum the inner length/width	45mm(Length is greater than 45mm Width is greater than 45mm)
Maximum finished height	60mm
Tape Magazine width	8mm/10mm/12mm/15mm/20mm(optional)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

Application
Toroidal Winding Machine Application:
Company Profile

Grewin Industrial Group Co., LTD, founded in 1993, is one of China's largesttoroidal winding machine manufacturers.
Widely used in toroidal transformer, current transformer, sensor, inductor manufacturing and other related industries.
Our team always adheres to the concept of serving customers and meeting customer needs, and has won unanimous praise from customers.
Certifications

Our Team with Customers

Packaging & Shipping
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for ToroidalTransformerWindingMachine
Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
After -sales service:
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
