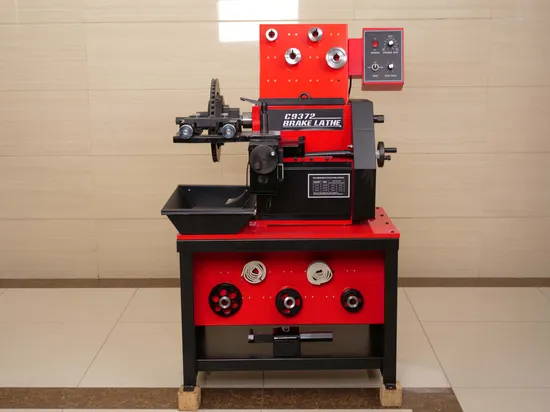

Light Truck Car High Quality Brake Lathe C9372

Product Description

Light Truck Car High Quality Brake Lathe C9372
Product Description
1."Replacement adapter" system eliminates the need for traditional bell clips and cones.
2. Continuously variable spindle and cross feed speed set for fast rough and fine finishing.
3. Precision double cutter and fast drum to rotor conversion help improve your service capability.
4. Dc motor designed to meet the requirements of industrial motion control.
5.Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.
Detailed Photos
Product Features
1. High Efficiency---A convenient design allows to quickly change from disc to drum.
2. Perfect Finish---The perfect finish meets or exceeds all OEM specifications.
3. Simple Convenience---A tool tray and tool board means you can easy to take tools and adapters.
4. Infinitely Speed---Variable spindle speed and cross feed speed provide a perfect finish.
5. Single Pass---Positive rate tooling for optimum finish with a single pass. Product Parameters

Feed rates-Disc and Drum	0"-0.026"(0mm-0.66mm)/r	Spindle Speed	70-320RPM
Feed Rates Per Minute	2.54"(64.5mm)	Spindle Weight Capacity (Standard 1" Arbor)	1501bs(68Kg)
Flywheel Diameter	6"-24"(152-610mm)	Disc Diameter	4"-20"(102-508mm)
Maximum Disc Thickness	2.85"(73mm)	Drum Diameter	6"-19.5"(152-500mm)
Drum Depth	6.5"(165mm)	Motor	110V/220V 50/60HZ
Gross Weight	300KG	Dimension	1100×730×720mm

Standard Adapter:
Maintenance of brake drum disc cutting machine:
(1) before using equipment should be wiped clean, and give each injection point and rotation surface injecting grease.
(2) before the equipment run, should check the engine oil transmission oil level at work. According to equipment use frequency, the oil should be replaced about half a year.
(3) head, shaft sleeve, etc to loading and unloading, often should strictly avoid knock against. If there are bumps, available to fix the light sand bar.
(4) after using for a long time, the spindle copper set of fitting clearance of radial and axial clearance of vertical screw will increase due to abrasion, clearance is too large will affect machining precision for the equipment, and therefore should be adjusted as appropriate.

Packaging & Shipping
Standard plywood packaging suitable for long-term sea transportation.
Noble quality, carrying peace of mind!
Our packaging allows you to send and receive with peace of mind!

Technological Process
Product Range
SYRISON - which is the company established to operate the international market of mechanical car parking system and car lifts.SYRISON is a professional mechanical parking system, auto maintenance equipment manufacturer. It is trusted by customers worldwide for more than 20 years. Operates in a 20, 000 square meters covered facility where over 200 professional personnel design, develop and manufacture products like garage equipment, car lift, parking lifts, parking system, hydraulic parts, material handing equipment. A/C service equipment for diversified customers worldwide covering aerospace, automotive, real estate&property management segment.The company takes the normative, professional, innovative and win-win business philosophy, efficient and intimate service, unity and cooperation, dedication and responsibility, service dedication, and pragmatic enterprising spirit of enterprise, and always pursues the goal of pursuing the best interests of partners, and wholeheartedly provides the greatest degree of protection for partners.With the spirit of "technology-based, customer-driven", the company will continue to provide quality products and technical services to the community with exquisite technology. Adhere to the concept of customer-oriented and the implementation of good service, we are dedicated to provide customers with good solutions and eliminate the worries of users. Let's work hand in hand to create a better future.
FAQ
Q1: Are you a trading company or manufacturer?
- We are the manufacturer with exporting License.
Q2. Can you do OEM for us ?
- OEM are welcome for us. Customers' brand, logo, label can be customized for product and export standard package.
Q3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.
Q4.Do I need a special floor or foundation to support my new lift?
A level floor is suggested for proper installation and level lifting. With proper shimming, small differences in floor slopes may be compensated for. If a floor is of questionable slope, consider a survey of the site and / or the possibility of pouring a new level concrete slab.
Q5.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems.
Q6.Our service
Customized service;
Two years quality warrant service;
Professional team supply service for life long time;
We can supply the user manual of different type;
24-hour online feedback

---
