Product Details
Product Description
Product Description

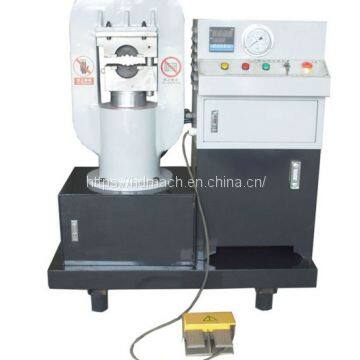

Wire rope sling swaging machine is widely used for wire rope industry. It has features of
1.high junction strength and large working load limited
2 perfect pressed shape
3 excellent cauterization resistance
4 saving wire rope cost
5 ensure the exact length
6 advanced procession and efficiency
7 good solution to rigging works with limited working space
8 widely used in steel, transportation and building industry
9 easy to operate
Mode No.
| YS-100
| YS-200
| YS-350T
| YS-500T
| YS-650T
| YS-1000T
|
Max press power (KN)
| 1000
| 2000
| 3000
| 5000
| 6500
| 10000
|
Max wire rope diameter in one pressing (mm)
| Φ13
| Φ20
| Φ26
| Φ32
| Φ38
| Φ44
|
Max wire rope diameter in multi-pressing (mm)
| Φ15
| Φ22
| Φ34
| Φ42
| Φ48
| Φ56
|
Power (KW)
| 1.5
| 2.2
| 3.7
| 4
| 5.5
| 11
|
Max working pressure (Mpa)
| 56Mpa
| 56Mpa
| 56Mpa
| 56Mpa
| 56Mpa
| 56Mpa
|
Max piston movement (mm)
| 78
| 80
| 80
| 120
| 160
| 200
|
The up speed of piston (mm/sec)
| 8
| 8
| 4.5
| 4.5
| 4.5
| 4.8
|
The down speed of piston (mm/sec)
| 10
| 10
| 4.5
| 8
| 8
| 10
|
Total length (mm)
| 1100
| 1100
| 1200
| 1500
| 1650
| 2550
|
Total width (mm)
| 550
| 550
| 600
| 610
| 650
| 1100
|
Total height (mm)
| 1300
| 1300
| 1400
| 1600
| 1600
| 2100
|
Net weight (kg)
| 600
| 900
| 1000
| 2000
| 3000
| 5500
|
>>
