Basic Info.
Control System
Tiller Handle
Starting Carburation System
Choke Valve
Gear Position
Forward-Neutral-Reverse
Type
Four Stroke Outboard Motor Engine
Transport Package
CTN, Standard Export Package; Carton
Specification
CE, SGS, ISO9001
Origin
Ningbo Zhejiang China
Production Capacity
20000units/Year
Product Description

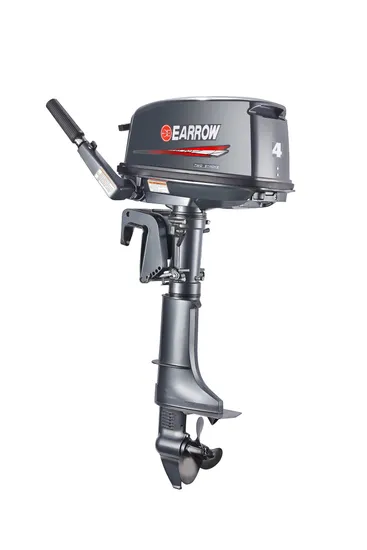

Yongkang Longxiao Industry and Trade Co., Ltd. Outboard Motors Our advantage:
Most die casting parts and plastic parts are made by our own factory, ensuring quality control. We have a special surface pretreatment production line that passivates the surface, making the parts and engine more durable and corrosion-resistant. Our main engineers have previous experience working in the Chinese subsidiary plant of BRP, learning from their technology to make our outboards more quiet. The color of the top cover is achieved through one-step moulding technology, making it more flexible and resistant to corrosion. In addition to gasoline outboards, we also offer propane outboards. Available in different colors: Pearl white, Dark grey, Jewelry blue. 99% of our spare parts are compatible with Yamaha spare parts, making maintenance easy. Our 4 stroke 6HP four stroke is one cylinder, while the 15HP 2 stroke is Yamaha Enduro type, providing more power. Our future:
Our company will continue to focus on producing and researching outboard motors. We are proud to introduce our new propane motor!
We are actively seeking opportunities to cooperate with friends all over the world. If you are interested, please do not hesitate to contact us!
| Model | F2.5A | F4B | F5C | F6C |
| Dimension | Overall length | 623mm (24.5in) | 750mm (29.5in) | 750mm (29.5in) | 750mm (29.5in) |
| Overall width | 345mm (13.6 in) | 333mm (13.1in) | 333mm (13.1in) | 333mm (13.1in) |
| Overall height S | 1021mm (40.2in) | 1040mm (40.29in) | 1040mm (40.29in) | 1040mm (40.29in) |
| Overall height L | 1150mm (45.3in) | 1168mm (46in) | 1168mm (46in) | 1168mm (46in) |
| Net weight (S/L) | 17KG | 27kg/ 28kg | 27kg/ 28kg | 27kg/ 28kg |
| Gross weight (S/L) | 24KG | 35kg/ 36kg | 35kg/ 36kg | 35kg/ 36kg |
| Package Size (S/L) | 111*44.5*49 cm³/ 124*44.5*49 cm³ | 115*45*57.5 cm³ / 128*45*57.5 cm³ | 115*45*57.5 cm³ / 128*45*57.5 cm³ | 115*45*57.5 cm³ / 128*45*57.5 cm³ |
| Full Throttle Operating Range | 5250-5750 r/m | 4000-5000 r/m | 4500-5500 r/m | 4500-5500 r/m |
| Maximum Output | 1.8kw/2.5hp | 2.9kw/4hp | 3.6kw/5hp | 4.4kw/6hp |
| Idling Speed | 1900±100r/m | 1500±50r/m | 1500±50r/m | 1500±50r/m |
| Type | Four Stroke | Four Stroke | Four Stroke | Four Stroke |
| Displacement | 72cc | 139cc | 139cc | 139cc |
| Bore×Stroke | 54.0×31.5 mm | 62×46mm | 62×46mm | 62×46mm |
| Ignition System | TCI | CDI | CDI | CDI |
| Spark Plug | NG K BR7HS-10 | NG K BR7HS-10 | NG K BR7HS-10 | NG K BR7HS-10 |
| Spark Plug Gap | 0.6-0.7mm | 0.6-0.7mm | 0.6-0.7mm | 0.6-0.7mm |
| Control System | Tiller Handle | Tiller Handle | Tiller Handle | Tiller Handle |
| Starting System | Manual | Manual | Manual | Manual |
| Starting Carburation System | Choke Valve | Choke Valve | Choke Valve | Choke Valve |
| Gear Position | Forward-Neutral | Forward-Neutral-Reverse | Forward-Neutral-Reverse | Forward-Neutral-Reverse |
| Gear Ratio | 2.08 (27:13) | 2.08 (27:13) | 2.08 (27:13) | 2.08 (27:13) |
| Trim and Tilt System | Manual Tilt | Manual Tilt | Manual Tilt | Manual Tilt |
| Recommended Fuel | Unleaded Gasoline | Unleaded Gasoline | Unleaded Gasoline | Unleaded Gasoline |
| Gear Oil | 0.075L | 0.1L | 0.1L | 0.1L |
| Fuel Tank Capacity | 0.9 L | 1.1L | 1.1L | 1.1L |
>>
