Mini Digger 2.5ton Hydraulic Excavator Swe25UF

Product Description

Product Description
23ton Crawler Excavator.

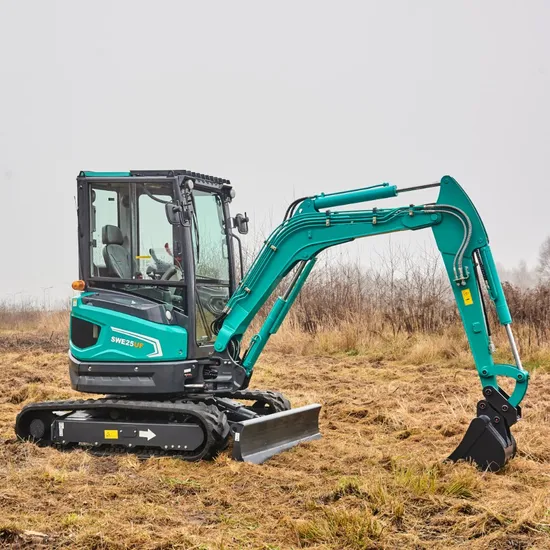

The SWE25UF compact excavator is a zero-tail excavator. The SWE 25UF benefits from excellent performance on the job. Its unique zero-tail compact design makes it the perfect option for tight job sites requiring power. Its weight category makes it very easy to transport. In the Sunward tradition of always offering the best value for money, the SWE25UF is no exception since it provides many features and up to 3 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE25UF keeps you safe and provides comfort in all working conditions.
Discover all the other advantages of the SWE25UF.
The SWE25UF has two cab options to choose from.
Open Cab (OROP) Comes standard. Enclosed Cab (EROP) includes heating, the windshield is removable and has sliding windows for airflow.
Detailed Photos
Product Parameters

SWE25UF Technical Parameters
Type of cab		cabin/canopy
Bucket capacity,std.		m3	0.08
Bucket width		mm	580
Machine weight		kg	2650/2550
Dimensions	Overall length	mm	4140
	Overall height	mm	2455
	Overall width	mm	1500
	Ground clearance	mm	310
Engine	Brand	/
	Model	3TNV80F-SPSU
	Displacement	L	1.267
	Output	kW/rpm	14.6/2400
Working ranges	Max cutting height	mm	4355
	Max loading height	mm	3010
	Max digging depth	mm	2840
	Max vertical wall digging depth	mm	2580
	Max digging reach	mm	4775
	Boom swing angle( left/right)	o	65/50
	Front swing radius	mm	1980
	Tail swing radius	mm	765
	Max digging force( Arm)	kN	14
	Max digging force( Bucket)	kN	24
Track	Type		Rubber crawler
	Track Width	mm	300
Undercarrige	Track Length	mm	1990
	Length to center of Rollers	mm	1560
	Lenhth to center of track	mm	1200
	Travelling speed(High/Low)	km/h	4.1/23
	Gradeability	deg	30
Swing speed		rpm	8.8
Ground pressure		kpa	25.1
Dozer size	Width	mm	1500
	Height	mm	325
	Lifting capacity ( Height/Depth )	mm	330/320
Hydraulic pumps	Type		2 variable plunger pump,lGear pump
	Displacement	L/min	2*28.8 + 19.2 + 6.5
	Hydraulic pressure	Mpa	2*21.5 + 18
Fuel tank capacity		L	26
Hydraulic oil tank capacity		L	24
