Basic Info.
Transmission Method
Hydraulic Pressure
Color
Blue or Accordng to Customers′request
Automation
Full-Automatic
Control System
Controlled by PLC
Cutter Type
Hydraulic Cutting
Forming Thickness
0.3mm to 0.6mm
Colour
Blue or According to Customer Need
Technical Support
Whole Life of Machine
Installation
Engineer Available Overseas
Transport Package
Naked Packing
Specification
6.5*1.2*1.2M
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
600.00cm * 120.00cm * 110.00cm
Package Gross Weight
3000.000kg
Product Description
Product Parameters
Final technical data pls contact us ,we will send to you accoring to your drawing of size.

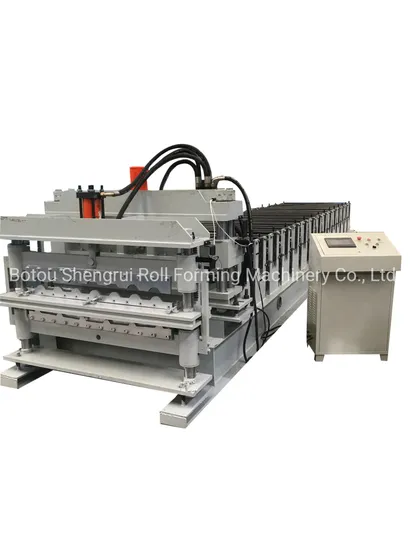

| Roofing Sheets Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine) |
| No. | Item | Specifications |
| 1 | Coil Width | according to drawings |
| 2 | Diameter of shaft | 70mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 16mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 0.2mm-0.6mm |
| 7 | material of rollers | 45#steel |
| 8 | Cutting type | hydraulic -cutting |
| 9 | Main power | 4kw+3kw |
| 10 | Main frame | 300H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 5 tons |
| 14 | Power | 3 Phase,380 Voltage,50Hz |
| 15 | Dimensions(L*W*H) | About 6.5*1.2*1.2M |
| 16 | Weight | about 3 tons |
Packaging & Shipping
Workshop
FAQ
(1)Are you manufacture or factory ?
we are manufacture and we have more than 10 years'experience.
(2)what's your guaranty of machines?and how to make sure quality of machines?
Guaranty of machines is 12 months.and after finish machines,we will supply video of working machines,also welcome to visit our factory and inspection of machine on site.
(3)Engineer available overseas?
our engineer can go to your place for installation of machines,customers need responsible for round -way flight tickets ,accommodation and engineer's salary is 100usd/day.
(4)if spares broken ,how to deal with it?
we can send new spare to you by DHL courier,about 5 to 7days you can receive them.
(5)what's your payment term?
our payment term is 30% advance payment by T/T,other 70% balance payment before shipment.
For more information ,pls contact :
>>
