Joston 20L 30L 50L CO2 Supercritical Extraction Tank

Product Description

Detailed Photos

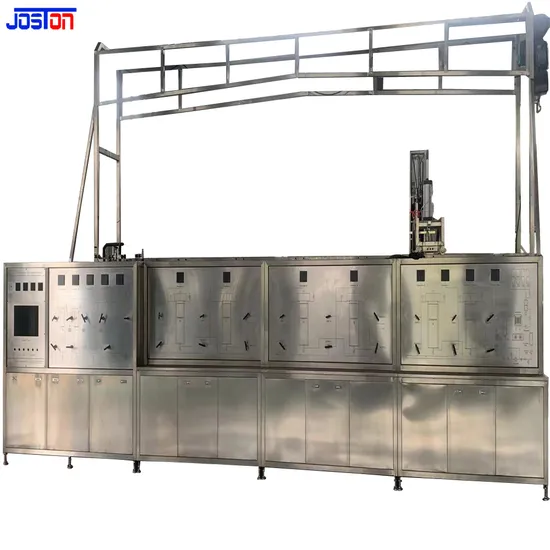

Product Description Supercritical CO2 extraction machine
The equipment is used to extract substances (solid or liquid) under high pressure and appropriate temperature, and change the conditions in the separator to resolve the dissolved substances, so as to achieve the purpose of separation. The device is mainly composed of extraction tank,separation tank, CO2 high-pressure pump, jacket circulation pump, chiller system, heat exchange system, CO2 storage tank, liquid level gauge, filter system, flow meter, temperature control system, safety protection device, tank barrel hoisting system, etc. The auxiliary equipment and system can meet the requirements of the main supercritical extraction system and process requirements.
Product Parameters Technical description

S/N	Model	Specification	Maxi working pressure	Capacity
1	1L	1 Extractor 2 Separators	450bar	3lbs-10lbs
2	2L	1 Extractor 2 Separators	450bar	6lbs-13lbs
3	5L	1 Extractor 2 Separators	450bar	18lbs-30lbs
4	5LX2	2 Extractors 2 Separators	450bar	33lbs-55lbs
5	10LX2	2 Extractor 2 Separators	350bar	66lbs-110lbs
6	15LX2	2 Extractor 2 Separators	350bar	90lbs-160lbs
7	24LX2	2 Extractor 2 Separators	350bar	120lbs-220lbs
8	25LX2	2 Extractor 2 Separators	350bar	125lbs-225lbs
9	24LX4	4 Extractor 2 Separators	350bar	240lbs-440lbs
10	25LX4	4 Extractor 2 Separators	350bar	245lbs-445lbs
11	50LX2	2 Extractor 2 Separators	350bar	400lbs-500lbs
12	50LX4	4 Extractor 2 Separators	320bar	800lbs-1000lbs
13	50LX6	6 Extractor 2 Separators	320bar	1200lbs-1600lbs
14	150LX2	2 Extractor 2 Separators	320bar	1200lbs-1700lbs
15	150LX4	4 Extractor 2 Separators	320bar	2400lbs-3400lbs
16	100LX2	2 Extractor 2 Separators	320bar	800lbs-1200lbs
17	200LX2	2 Extractor 2 Separators	320bar	1600lbs-2400lbs
18	200LX4	4 Extractor 2 Separators	320bar	3600lbs-4800lbs
18	700LX3	3 Extractor 2 Separators	320bar	8800lbs-12000lbs
19	1000LX3	3 Extractor 2 Separators	320bar	10000lbs-18000lbs

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
2.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
3.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
4.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
5.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
