Basic Info.
Production Speed
80-90PCS/Min
Computer Control Panel
Without Computer Control Panel
Process
Finishing Process Machine
Usage
Packing Paper Machine
Type
Paper Folding Machine
Paper Request
150-350G/M2
Max Bowl Bottom Diameter
Max115mm
Max Bowl Height Diameter
Max118mm
Transport Package
Wooden Case
Production Capacity
60PCS/Month
Product Description
MACHINE INTRODUCTION

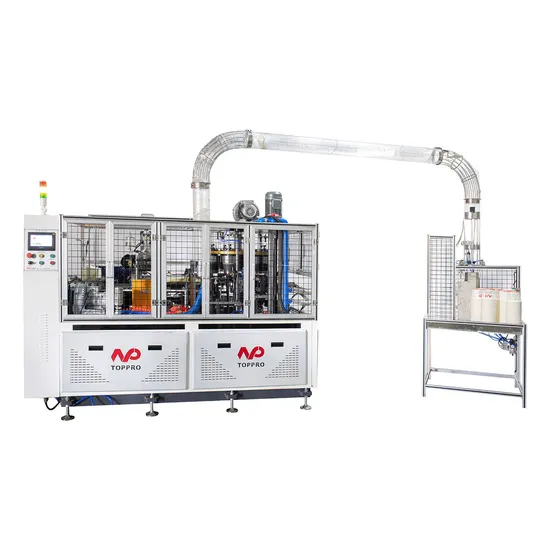

WJ-90 paper bowl machine is an equipment both for single coated and double coated paper bowl. Compared to the original ZWJ-H118 paper bowl shaper, this machine fits ultrasonic welding function to make the bowls much butter and beautiful. It has the function of auto paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, curling, water line mark, stack etc. It can alarm via sensor checking, counting itself. AWJ-H118A is good machine for making soup bowls and noodles bowls etc.
MAIN TECHNICAL PARAMETER
| Model | WJ-90 |
| General power | 10kw |
| Paper request | 150-350g/m2 (single PE paper) |
| Voltage supply | 220v50hz/380v50hz or customized |
| Bowl size | 8-35oz |
| Max bowl bottom diameter | Max 115mm |
| Max bowl height diameter | Max 118mm |
| Speed | 80-90 pcs/min |
| Weight | 2500kgs |
| Measurement | 2900*1400*1750mm |
AFTER SERVICE
1. Paper Bowl Machine warranty: 1 year
2. the guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, adjustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole lesson!
6. we supply the consumable spare parts for free for one year use.
Advantage:
1.The core components adopt open cam design, withgear motor, machine has full automatic lubricationby oil pump and filtration,more convenient formaintenance.
2.Separated curling from knurling and heaters makesless noise on machine than old design, more stabilityand long lifetime.
3.Control panel use touch screen and PLC controll, aclearer vision, the whole electrical appliances adoptimported configuration,have high generality andgood performance,and facilitate equipmentmaintenance
4.New-type stable collecting system solves thecollecting problem of the paper bowl totally, reducethe packing labor and improve the workingefficiency.
FACTORY VIEWE
Ruian Lifeng Machinery Co., Ltd (old name: Ruian Sincere Machinery Co., Ltd. ) is a manufactory specialize in producing series of automatic machinery for paper containers like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc. Especially the water cone cup machine, we get the patent in China. And all of our products have past CE, SGS. In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramount". Welcome the clients at home and abroad to negotiate and cooperate.
>>
