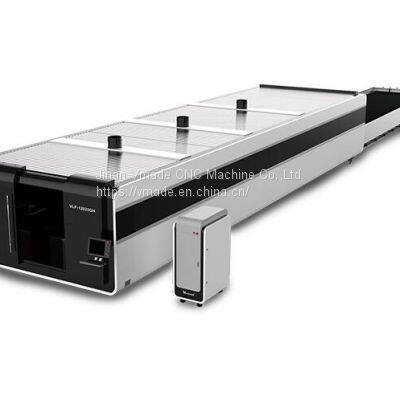

12M Full-page Thick Plate Cutting: Fast, Stable And High Quality
Vmade high power laser cutting machine includes 12025G (12m*2.5m), 10025G (10m*2.5m) The overweight bed process meets the
diverse needs of the global market for large sheet metal cutting High-end, high-precision, high-speed, high-format and cost-effective.
Safety and No Pollution
-High power laser cutting machine With a fully enclosed design;
-The observation window adopts an European CE Standard laser protective glass;
-The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
-The weight of machine is 7500kg.
Plate Welding Heavy Work Bed
-Annealed And Heat Treated
Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in weight is very beneficial to the laser -cutting machine cutting speed.
Innovative Four Slings Working Bed
For reducing damage to the work bed during laser working, Vmade Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled.
The Fourth Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Auto Focus Laser Cutting Head
-Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
-Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
-Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
Segmented smoke exhaust-create a smokeless clean world
-Full coverage, super suction
Adopt the latest cutting-edge tobacco control technology Each section of the bed has a smoke exhaust device
-Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward Full 360° strong adsorption and consistent smoke exhaust Effectively purify the smoke and dust on the top of the enclosed cutting platform Improve purification efficiency and reject lens contamination
-Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke
Technical Parameters
Machine model
| VLF2040GH
| VLF2560GH
| VLF21005GH
| VLF25120GH
|
Laser power
| 8000W 12000W 15000W 20000W(Optional)
|
Dimensions
| 11475*2574*5169mm
| 14937*3952*2287mm
| 22953.5*4006*2336.5mm
| 27092*4119*2336.5mm
|
Working area
| 4000mm*2000mm
| 6000mm*2500mm
| 10000mm*2500mm
| 12000mm*2500mm
|
Repeat positioning accuracy
| ±0.02mm
|
Maximum speed
| 200m/min
|
Max. acceleration
| 2.5G
|
Voltage and frequency
| 380V 50Hz/60HZ
|
The above specification are provided by our engineers, if you need more technical guidance, please contact us immediately.
Application Industry
High Power Laser Cutting Machine can carry up to 12000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
As a Fully Enclosed Laser Cutting Machine Manufacturer, we can provide you with high precision Laser Cutting Machine. All machines pass the European Union CE authentication, American FDA certificate and are certified to ISO 9001. Please get in touch with us.
>>
