Zx50c Milling Machine Multifunction Drill and Milling Machine Manual Mills

Product Description

Product Description
ZX50C universal milling machine not only has the function of end milling, but also has the function of horizontal milling. The transmission of horizontal milling shaft is realized through a group of tower wheels, with stable transmission and high power. It is widely used in drilling, milling, boring, grinding and other cutting of metal materials and other materials. It is suitable for instrument industry, machinery manufacturing, architectural decoration and machine repair workshop with single piece or batch production. It is an ideal equipment for machining.

Product Parameters

PARAMETER ITEM	UNIT	ZX50C	ZX7550CW
Maximum diameter of drilled hole	mm	50	50
End mill maximum width	mm	100	100
Maximum diameter of vertical milling	mm	25	25
Boring maximum diameter	mm	120	120
Maximum tapping diameter	mm	M16	M16
Spindle taper hole		MT4	MT4
Distance from spindle end face to table	mm	38-430	90-490
Spindle speed range	rpm	115-1750	115-1750(V) 60-1350(H)
Spindle stroke(Z)	mm	120	120
Working desk size	mm	900x240	1000x240
Workbench stroke	mm	400x230	500x230
Dimensions	mm	1100x970x1650	1280x100x2080
Motor Power	kw	1.5/2.2	1.5/2.2
Weight	kg	500/600	1000/1100

Detailed Photos

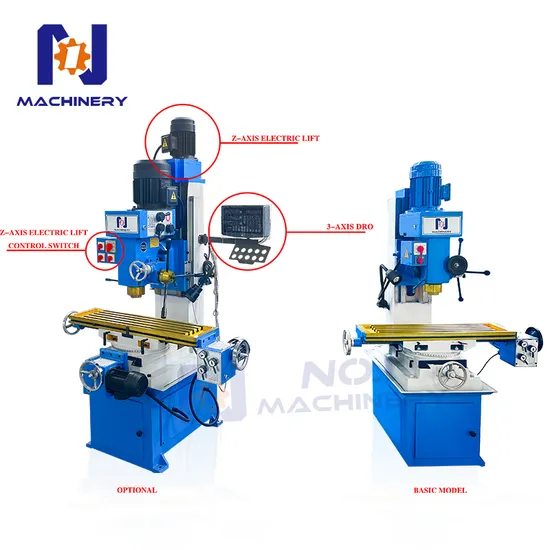

GEAR DRILLINGMILLING HEAD
Gear type drilling milling head ,it can be rotated 45 degrees
WORKTABLE
Ultra-audio quenching,precision grinding and seraping guide.
WORKTABLE FEED
Standard :X axis auto feed ,Optional:Y axis auto feed and Z axis electric lifting
3 AXIS DRO
3 axis digital readount isoptional accessory,customer can choose it according tothe requirements

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
