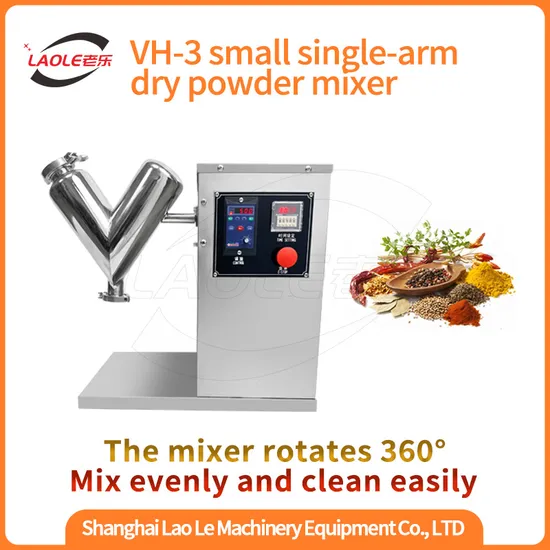

Vh-3L V-Type Dry Powder Mixing Machine, Laboratory Chemical Mixing Machine

Product Description

Product Description
Product Description
Product Features:
First, small dry powder V-type mixer powder mixer overview:This machine is suitable for pharmaceutical, chemical, food dry powder, granular material mixing.The mixing cylinder of the machine has a unique structure, uniform mixing, high efficiency and no accumulation of materials. The whole machine structure is simple and easy to operate.The outer surface and material contact parts are made of high-quality stainless steel, which is beautiful in shape and easy to maintain and clean.Second, small dry powder V-type mixer powder mixer principle and structure:The machine is equipped with a motor and a reducer at one end, and the motor power is transmitted to the reducer through the belt, and the reducer passes throughThe Ally is passed to the V-barrel. Make the V-shaped barrel run continuously, and drive the materials in the barrel to mix on the top, bottom, left and right of the barrel.
Features of VH High Efficient Mixer (V Shape Mixer) Our high efficient mixer (V shape mixer) adopts V shape unsymmetrical charging barrels to mix the materials. With a reasonable structure and easily operated, this machine can mix materials without any corner untouched and it is highly efficient. The charging barrels are made up of stainless materials with smooth walls inside which are easy to clean. It is an ideal facility for the enterprises. 1) Materials: carbon steel, stainless steel 2) Batch capacity: 2L--5000L 3) Unique structure able to mix efficiently, with no dead corners 4) Easy to feed, discharge, clean and replace materials Product Parameters
Parameters of VH High Efficient Mixer (V Shape Mixer):

Model	VH-3	VH-5	VH-8	VH-20	VH-30	VH-30
Barrel capacity(L)	3L	5L	8L	20L	30L	30L
Feed volume (L)	1.2L	3L	4L	10L	15L	15L
Feed weight (kg)	600-800g	2kg	5kg	8kg	10KG-20KG	10KG-20KG
Agitation speed (r/min)	24r/min	25 rpm	35r/min	20r/min	20r/min	20r/min
Motor power (KW)	0.06KW	0.55KW	0.55KW	0.75KW	0.75KW	0.75KW
Overall size(mm)	520*285*480	680*275*475	750×370×550	800×600×1000	800×600×1000	800×600×1000
Weight (KG)	13	60	60	120	120	120

Model	VH-50	VH-100	VH-200	VH-300	VH-500	VH-1000
Barrel capacity(L)	50L	100L	200L	300L	500L	1000L
Feed volume (L)	20L	30L	80L	100L	200L	400L
Feed weight (kg)	20--25(KG)	30kg	80kg	120kg	200kg	400kg
Agitation speed (r/min)	24r/min	20r/min	20r/min	20r/min	20r/min	20r/min
Motor power (KW)	0.75KW	1.5KW	1.1KW	1.5KW	2.2KW	3KW
Overall size(mm)	1100*600*1150	2000X700X1450	2300×800×1700	2350*800*1800	2700*1000*2400	3000*900*2400
Weight (KG)	150	180	350	800	900	1000

Model	VH-1500	VH-2000	VH-3000	VH-4000	VH-5000
Barrel capacity(L)	1500L	2000L	3000L	4000L	5000L
Feed volume (L)	800L	1000L	1300L	1800L	2000L
Feed weight (kg)	600kg	800kg	1000kg	1200kg	2000kg
Agitation speed (r/min)	20r/min	20r/min	20r/min	20r/min	20r/min
Motor power (KW)	4KW	5.5KW	7.5KW	11KW	11KW
Overall size(mm)	3400*1200*2900	3800*1200*2900	4100*1800*3100	4300*2000*3600	4800*2200*3800
Weight (KG)	1200	1400	1800	2200	4000
