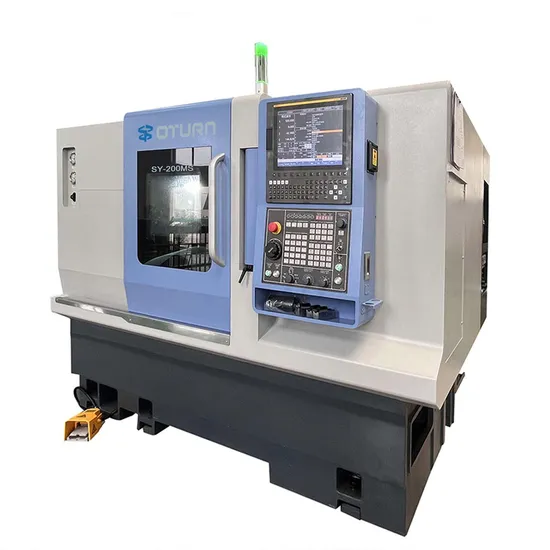

Precision Double Spindle CNC Lathe Machine with A2-6 Spindle and Mitsubishi Control

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability. It can maintain long-term reliable precision, processing stability, and tool life. Stress relief treatment improve accuracy and stability. The high-strength roller rail design and screw pre-tension drive system enhance response rigidity.
Both ends of the workpiece can be machined simultaneously in a single clamping, significantly simplifying manual operations, boosting output, and reducing processes. The second spindle, capable of full turning, handles workpieces during machining to reduce cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminates spindle vibration spindle, with nose end deflection accuracy within 0.002mm. This improves the surface finish of the workpiece.
The rear-mounted rotor ensures easy installation and maintenance.
The spindle motor features a cooling system that mitigates thermal displacement effects, maintaining consistent spindle working temperature. The spindle system undergoes rigorous dynamic balance testing, exhibiting excellent precision retention, high rigidity, and high efficiency. This enables the machine to perform both finishing and rough machining, as well as heavy cutting. Ideal for mass-producing complex, high-finish components.product.
2. High rigidity integral servo power turret: Known for rapid and precise tool changes. The tool holder features a high-rigidity BMT interface, driven by a servo spindle motor for power transmission.
3. Equipped with THK linear guide rails and ball screws, the heat-treated, precision-ground ball screws ensure optimal precision and durability. Each axis uses a direct transfer shaft structure with a double-anchor pre-relay method to minimize thermal displacement, significantly improving machining accuracy. High rigidity, large size, and heavy-duty linear slide rails maintain machine accuracy under impact, allow smooth displacement, and low noise, extending service life.
4. Standard configuration includes the FANUC system, with the feed drive utilizing a FANUC servo motor.
5. Perfect hydraulic and lubrication systems, incorporating high-quality hydraulic pumps, valves, and components, greatly reduce failure rates. The design is simple yet reliable.
6. Features a Taiwan rotary chuck, oil cylinder, and automatic chip removal device, significantly reducing operator labor intensity while ensuring safe, efficient production. These components can be programmed for control. Special fixture.
Product Parameters

Name	Unit	SY200MS
The largest diameter rotating bed	mm	Ф600
Max processing diameter	mm	Ф400
Max.Swing Over Cross Slide	mm	Ф300
Max processing length	mm	290
Bar diameter	mm	Ф45/45
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
X/Z/S motor power	kw	2.4/2.4/1.8
X/Z/S travel	mm	240/230/360
X/Z/Y/S axis moving fast	mm/min	20/20/20
Slide rail type	mm	35
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
The Tool tower type	mm/pcs	BMT55-12T
Power cutter tower motor	Kw	5
Max speed of spindle	rpm	5000
The tool biock specifications	mm	25x25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.15
Machine size	mm	2600*2100*1900
Machine Weight	kg	4500
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2L
Auto lube pump motor power	W	50
Cooling water pump power	W	750
