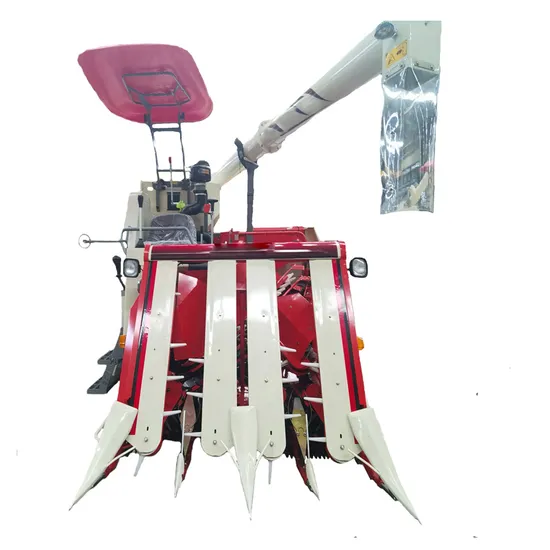

Half Feed Track Combine Harvester Rice Harvesting Machine

Product Description

Product Parameters

Model			Iseki-808G
Dimension			4340mmX2350MMmmX2610mm
Min Ground Clearance			230mm
Weight			2975KG
Engine	Model		Nissan ZD30N08-3D1
	Structure		In-line, Four Cylinder,Water Cooled, ,DI,Dual-Cam four valve/Tier III Engine
	Rated Power/Speed		60KW/81.6HP/2600rmp
	Displacement		2953L
	Fuel Tank Capacity		85L
Walking Part	Crawler	Width*Length	450mm*1620mm
		Crawler Pitch	50
		Thread	1070mm
	Transmission type		HST+Gearbox (3 Level)
	Speed	Forward(M/S)	Low: 0-0.98 High:0-1.65 Walk:0-2.05
		Reverse(M/S)	Low: 0-0.84 High:0-1.42 Walk:0-1.75
Cutting Part	Cutting Width		1450mm
	Cutting Height		650-1300mm
	Lodge crop cutting		Anti: 85°, Along 70°
	Speed Gear		Same as walking speed Minor Two&Lifting Three
	Threshing Depth Adjustment		Electrical(Auto+Manual Adjustment)
Thresher	Threshing Method		Lower Side Threshing Axial Flow
	Drum	DIA*Length	462*1050mm
		Re-Threshing Dia*L	60*782mm
		Discharge*Length	150*788mm
Self Control		Feeding Depth	Yes
		Jam Stopping	Yes
		Full Grain Storage Alarm	Yes
Binder		Installation	Over Hang Type
		Weight	103Kg
		Dimension	1945*1495*1140mm
		Rated Speed	647 r/min
		Transmission Method	V Belt
		Binding Size(Perimeter)	450-600mm
		Rope Size	1.3-1.6mm
		Binding Type	D Type
		Binding Speed	<1.3 S /Bundle
		Binding Number	20-33.3 Bundle/Hectare
		Working Area Per Rope	0.4-0.67 (Hectare/Rope)
		Working Efficienty	0.2-0.34 Hectare/Hour

FAQ:
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.

2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.

3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.

4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:

For combine harvester:

1 set 4LZ-5.0
For Power Tiller: 18 sets GN12; 20 sets M80
For Spare Parts: 15-18 tons

(2) 40 High Cube Container Loads:

For Combine Harvester:
3 sets 4LZ-5.0
For Power Tiller: 40 sets GN12; 50 sets M80
For Spare Parts: 30-35 tons

5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.

6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training, marketing, advertising, maintaining and repairing the machine during the harvesting season.

7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering department will study and offer you the suitable solution.

---
