| name | unit | TMX200A |
| Grinding diameter range | mm | 8~320 |
| Maximum grinding length | mm | 1000 |
| Maximum workpiece weight | kg | 150 |
| Center high | mm | 180 |
| top center distance | mm | 1000 |
| The maximum movement of the table | mm | 1100 |
| Maximum swivel angle of the worktable | ° | clockwise 3° |
| Table moving speed range | m/min | 0.1~4 |
| -Worktable handwheel - Rotation amount | mm | 6 |
| Headstock spindle speed range | rpm | 28,43,73,110,184,277 |
| Headstock Spindle Taper Hole Specifications | | No.4 Morse |
| Headstock Chuck Specifications | mm | 165(three-jaw) |
| Tailstock sleeve taper hole specification | | No.4 |
| Tailstock sleeve movement | mm | 30 |
| The maximum movement of the grinding wheel frame | mm | 266 |
| Grinding wheel frame rapid movement amount | mm | 50 |
| -Grinding wheel holder handwheel - rotation amount | mm | wind 2 ,0.5 |
| Grinding wheel handwheel - grid movement | mm | wind 0.01,refined 0.0025 |
| Grinding wheel spindle speed | rpm | 1670 |
| (D×t×d)Grinding wheel specification (D×t×d) | mm | 400x40x127 |
| Maximum grinding wheel linear speed | m/s | 35 |
| Cooling pump flow | L/min | 25 |
| Grinding wheel motor power | kw | 5.5 |
| Headstock motor probability | kw | 1.1 |
| total power | kw | 9 |
| )Machine tool dimensions (length × width × height) | mm | 3340×1670×1650 |
| Machine weight | kg | 3700 |

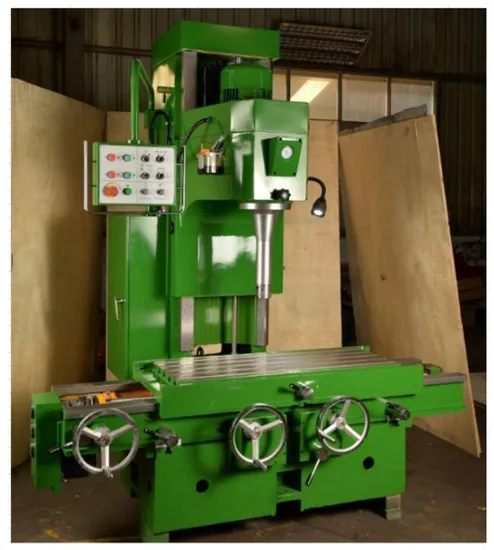

if need accessory, please see the photo.
