Hot Selling Hot Water Thermal Skirting Boards Radiator

Product Details

Product Description

Product Description
Hot Selling Hot Water Thermal Skirting Boards Radiator
Hefei constant-warm hvac equipment co., LTD lastest invention skirting radiator that intergrate heating and decoration into ultra-thin heating plate,which completely changed the pattern of World water heating industry, making water heating industry from the original wall mounted radiator and radiant floor heating , into the world of wall mounted radiator,radiant floor heating and skirting radiator.
There are two waterways behind the panel, and they are extruded and shaped together with the front panel by 6 fins. The structure is reasonable, the heat conduction is uniform and rapid.So the heat dissipation is high and the heat dissipation is as high as 232w per meter.

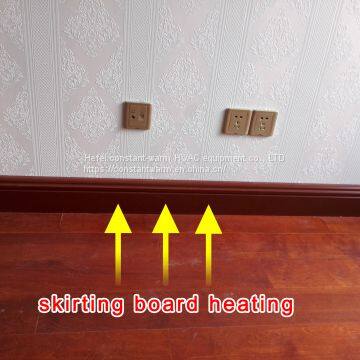

Looks like a normal skirting board however, it is actually a skirting board heater. Skirting board heaters are an alternative to radiators and underfloor heating
Technical parameters are as follows:
The material is 6063-t5 aluminum alloy,
Height is 12cm and thickness is 3cm,
Standard length is 2.4m and weight is about 1.4kg.
The inner diameter of the channel is 15mm*2
The water capacity is 0.34 L per meter,
National standard heat delta t64.5 ° C conditions is 232 w/m,
Refer to the heating area: 1.7-3/m.
True radiant healthy heating! InwarmSkirt has absolutely no gaps and grilles, thus avoiding the movement of dust and spores caused by air convection.
Inwarm skirting radiator is not only intergrate heating and home decoration perfectly, but also is the faster to heat up and energy saving way of heating, for the following reasons:
A. The material used for skirting radiatorg is 6063-t5 aluminum that can rapid heat dissipation, which ensure the heat in the heating pipe transfer to the room rapidly.
B. Install around the room along the corners. The total thermal load is highly configured.Not only the temperature is rising rapidly, but the temperature is very even.Install skirting radiator around a whole room that more than 10 square meters., equal to 180-220w of heat dissipation per square meter,the equivalent of 2 to 3 times of the wall-mounted radiator.
C. We adopt the radiant heating mode. Thermal radiation is a faster method in heat conduction.
D. Water capacity in skirting radiator is very small and there is only 0.17 L per meter,for example with a 100 square meters house, the length of skirting radiator is about 50-70 meters, the length of aluminum plastic pipe is about 100 meters.According to the calculate, the whole heating water capacity is about 20 L , the total water capacity for the wall mounted gas furnace is easy and the water can heat up quickly, so it's very energy saving;
E. Due to heat up fast, intermittent heating can be provided, so people can close the radiator when go out and open the radiator again when come back to reach the ideal temperature within a few minutes. The energy saving is self-evident.
It can be seen from above that Inwarm skirting radiator is relatively energy-saving among all heating methods, which is at least 60% more energy saving than general wet radiant floor heating and at least 20% more energy saving than ordinary wall mounted radiator.
Circular heating, high comfort.From the room to the middle radiant heating, from the foot of the body heating, feet warm head cool, very comfortable.
The advantages of skirting radiator in material, appearance and performance
1. Long service life, which can be shared with the buildings
Inwarm skirting radiator are all made of high quality 6063-T5 aluminum profile,its hardness is above 10 degrees of vickers.It complies with the regulations on mechanical properties in gb5237-2000 and chemical composition in GB/ t3190-1998.The thickness of the heating water pipe is up to 3.6mm,at least 3 times of general wall mounted radiator.Under the water quality of heating is in line with the national standards circumstances, the service life is longer than any other radiator and radiant floor heating , which can be used for a lifetime without replacement.
2. Six radiator colors that work with any floor or tile perfectly
After survey the Chinese market,we choose Chinese consumers several floor color as a standard,cooperation with a powder coating enterprise that is the world top 500 have developed a variety of color.Respectively is: white, black, creamy yellow, light brown, brown and dark brown and so on, no matter what color of tile or floor in you home,you can find the right color of skirting radiator that harmonious collocation with it and it really integrate heating and home decoration perfectly.
3. The surface is smooth,bright and durable
The surface electrostatic powder of Inwarm skirting radiator is the world top 500 enterprise production,which is expensive,high temperature resistant,anti-ultraviolet,colorfast outdoor powder,before spraying the aluminum surface will be dealed with pickling,phosphating, passivation, water washing process and then we use imported powder spraying equipment to electrostatic spray.At last put it into the oven under the high temperature of 200 degrees bake for 20 minutes.The skirting radiator of aluminum alloy after the above treatment,not only the surface is smooth and bright, durable and fresh and can be used for a long time without discoloration and falling off, but also can be cut arbitrarily when installed, without the phenomenon of falling off or collapsing.
4. The appearance is designed rounded and luxurious
Designer according to the Chinese consumers' aesthetic view make the curve of the skirting line to the wall conforms to the Chinese aesthetic standard.The groove on the face plate has sharp edges and corners, which highlights the beauty of lines.The feeling of that whole give us is a kind of beautiful appearance ,luxurious and high grade skirting line.

---
