HVAC System H13 Mini-Pleat HEPA Air Filter for Clean Room

Product Description

HVAC System H13 Mini-Pleat HEPA Air Filter For Clean Room Product Description
1. High efficiency for H13, is the finally filtration in clean room that use for filter the particles more than 0.3um.
2. Large dust capacity,because the filter media , the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3. Aluminum frame can anticorrosion for long time.
4. Sealant around the media prevent the air filter is without any air leaking.
5. Hepa filter with metal screens,prevent the media is without any damage.
6. Light weight for easy to install.

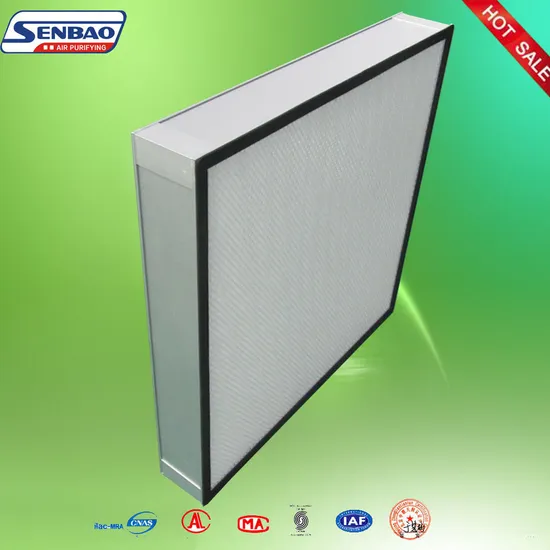

Product show

Product Parameters Material and Performance

Frame Material	Aluminum
Filter medium	Glass fiber
Sealant	Polyurethane adhesive
Partition	Hot melt adhesive
Max. humidity	80%RH
Max. temperature	80°C

Specification and technical parameters

Model	Nominal Size WxHxD (inch)	Actual Size WxHxD(mm)	Rated Airflow (m³/h)	Surface Wind Speed (m/s)	Initial Resistance (pa)	Efficiency (Colorimetric Method)
GCW	24 x24 x 2	610x610x50	480	0.35	≤120	H13
GCW	36x 24 x 2	915x610x50	700	0.35
GCW	48 x 24 x 2	1220x610x50	950	0.35
GCW	24 x 24 x 2-3/4	610x610x69	600	0.45
GCW	46x 22-1/2x 2-3/4	1170x570x69	1100	0.45
GCW	46 x 46 x 2-3/4	1170x1170x69	2200	0.45
GCW	48 x 24 x 2-3/4	1220x610x69	1200	0.45
Special size can be customized.

Company Profile
Our workshop
FAQ 1. Can the product be customized?
Yes, both the product and the packaging can be customized. 2. How to pay? Our company accepts various ways of payment, such as T/T , L/C etc. 3. How long is the delivery time? It depends on the order quantity. USually it takes about 25 days to produce a full 20' container. 4. Do you arrange the shipment? Yes, our company can arrange the shipment to deliver the goods according to the client's customer's requirements. 5. What about the after-sales service? Our company is responsible for the supplied product within its usage life.

---
