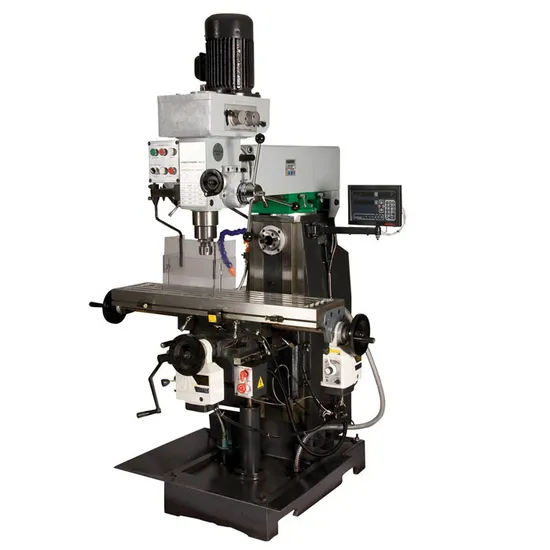

Zx7550 Zx7550c Zx7550cw High Precision Milling and Drilling Machine

Product Description

High Precision Milling and Drilling machine(ZX7550CW, ZX7550C, ZX7550, ZX7550W)
Product Description

Features:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5.Three axis hardened treatment, high rigidity.
6.vertical horizontal multi-functional ,drilling ,milling, boring operation.
7.X axis mechanical feed,Y.Z axis can be added the device
8.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate

Product Parameters
Specification of our drilling and milling machine:

Model	ZX7550W	ZX7550CW
Max.drilling dia (mm)	50	50
Max.horizontal milling dia (mm)	100	100
Max.vertical milling dia (mm)	25	25
Max.boring dia (mm)	120	120
Max.tapping dia	M16(Vertical)	M16
Spindel Tapper	ISO30/R8	ISO30/R8
Distance.spindle to table surface (mm)	80-460	90-490
Spindle speeds range (r.p.m)	230-1825(Vertical) 80-1300(horizontal)	(Vertical)115-1750 (Horizontal)60-1350
Spindle travel	120	120
Table size (mm)	800x240	800×240
Table travel (mm)	400x230	400×230
Overall dimensions (mm)	1280×1100×2080	1280×1100×2080
Motor (Kw)	0.85/1.5(Vertical) 1.1(horizontal)	( Vertical)0.85/1.5 (horizontal)2.2
N.W/G.W (Kg)	700/880	850/1000

Standard accessories:
Horizontal Cutter bar,
Draw bar,
worklight ,
cooling pump,
Milling chuck,
drill chuck,
oil collecting plate,
Operation manual
Optional accessories:
Universal dividing head
Rotary table
Machine vice
Slotting head
Milling chuck set
DRO
Clamping kits
Boring head
Transimission box
Detailed Photos

Installation Instructions

Packaging & Shipping

---
