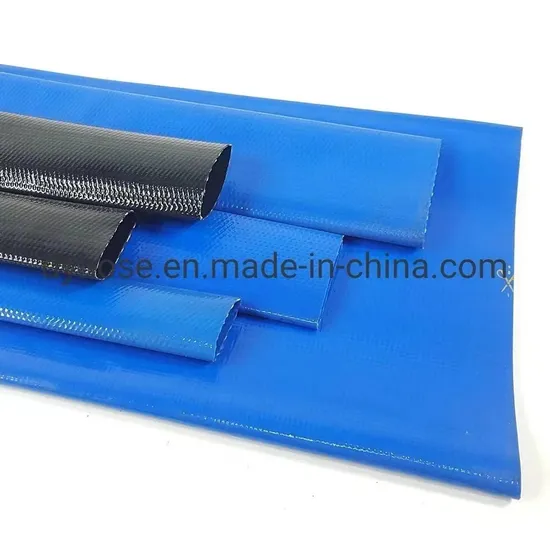

Flexible Transparent 1/2"-16" Water Irrigation Pipe TPU PVC Layflat Hose

Product Description

Product Description High Quality Flexible Soft Irrigation Water Pump Well Discharge PVC Layflat Hose
Description-PVC LAYFLAT HOSE
Application
Widely used in agriculture and forestry irrigation, industrial and mining enterprises supporting the use. Fluid transmission under high pressure at low or medium operating temperatures.
Characteristic
Advanced technology, the fiber reinforced layer of double directional cross winding by one-step molding plastic. The product has the characteristics of resistance to fracture, high pressure resistance and low expansion rate. The radial fiber is increased, and the tensile strength is increased. It has the following features:
*It has the advantages of tensile resistance, fracture resistance, high pressure resistance and low expansion rate.
*Light, soft, bright color, corrosion resistance, aging, wear resistance, anti ultraviolet.
*No peculiar smell. Environmental protection products.
*When the liquid is transported at low temperature, it can keep soft and elastic.
Temperature: -15 ~65 ºC
ID size: 12mm~406mm
Technica Data Sheet

PVC LAYFLAT HOSE (4BAR)
Size Inch	ID MM	Thickness MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
1"	25	1.13	4	15	100	150
1-1/4"	32	1.2	4	15	100	170
1-1/2"	38	1.2	4	15	100	200
2"	51	1	4	12	100	230
2-1/2"	65	1.1	4	12	100	320
3"	76	1.1	4	12	100	350
4"	102	1.25	4	12	100	550
5"	127	1.35	3.5	10	100	750
6"	152	1.35	3	9	100	850
8"	203	2	3	9	100	1700
10"	254	2.4	2.5	7	100	2600
12"	305	2.35	2	6	100	3000
Size Inch	ID MM	Thickness MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
3/4"	19	1.35	6	21	100	110
1"	25	1.3	6	21	100	160
1-1/4"	32	1.2	6	21	100	190
1-1/2"	38	1.2	6	21	100	220
2"	51	1.35	6	18	100	300
2-1/2"	65	1.55	6	18	100	430
3"	76	1.5	6	18	100	500
4"	102	1.9	6	18	100	700
5"	127	2	6	10	100	1100
6"	152	2.4	6	18	100	1600
8"	203	2.6	5	15	100	2000
PVC LAYFLAT HOSE (8/10BAR)
Size Inch	ID MM	Thickness MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
3/4"	19	1.55	10	30	50	140
1"	25	1.8	10	30	50	200
1-1/4"	32	1.5	10	30	50	210
1-1/2"	38	1.7	10	30	50	290
1-1/2"	40	1.9	10	30	50	300
1-3/4"	45	2	10	30	50	350
2"	51	1.55	8	24	50	400
2"	51	1.8	10	30	50	420
2-1/2"	65	1.8	10	30	50	650
2-1/2"	65	1.9	10	30	50	700
3"	76	2	8	24	50	800
3"	76	2.55	10	30	50	850
4"	102	2.25	8	24	50	1000
4"	102	2.7	10	30	50	1200
5"	127	2.8	8	24	50	1500
6"	152	3	8	24	50	2000
8"	203	3.2	6	18	50	3000
DOUBLE PVC LAYFLAT HOSE(4BAR)
Size Inch	ID MM	Thickness MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
2"	51	1.4	4	12	100	320
3"	76	1.5	4	12	100	450
4"	102	1.5	4	12	100	600
6"	152	2	4	12	100	1100

Production Process
Package&Shipping
Package
Hot Products
Company Profile
Packaging & Shipping
Shipping Different amount of time will be required for difference FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plastic bags for inner package.Out package you could choose the carton box or woven bags.
Q2. What is your terms of payment?
A: T/T ,30% In Advanced, and 70% Before delivery,Or L/C. The pictures of products detials and packages will be sent before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take within 10 to 30 days as receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.But the delivery charges will be deducted from the customer's future order.
Q6. Do you test all your goods before delivery?
A: Yes,we have three inspection steps to make sure the products you received in high quality.
Q7: Are you accept the OEM?
A: Yes,we support the OEM or ODM.
Q8: Our port of shipment?
A: Qingdao,China or as your request.

---
