Evaporator for Fishmeal Production Line / Fishmeal Plant

Product Description

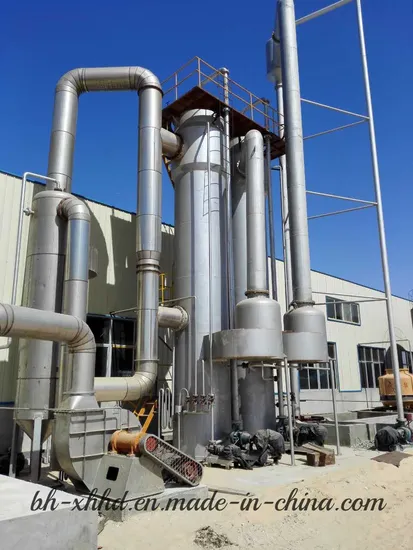

Structure The falling film type evaporator is made up of I and II or more effect evaporator, steam and liquid separator, hydraulic ejector, hydraulic pump,liquid circulation pump and all kinds of connecting pipe.
Working Principle
Fish protein water out of the vertical oil and water separator is pumped into protein bucket by submerged pump and is heated to 85ºC with steam (concentration is about of 6.5%). And then into the II effect evaporator liquid room for circulating enrichment by circulation pump. The protein water in the spray chamber is injected into the the tube. Then flow down from the inner wall of the tube in membrane. It is the heated by secondary steam from I effect outside the tube.
The evaporation starts in the condition of vacuum negative pressure.The gas-liquid mixture fell to the bottom of vapor liquid storage chamber to keep cycle enrichment. After reaching a certain concentration, the gas-liquid mixture comes into I effect evaporator to continue the next round of cycle concentration through by-pass pipe. The secondary steam produced by concentrated liquid inside I effect evaporator come into the II effect evaporator to be the heating steam. When the concentration reach percent of solid content, protein concentrate water is sent to concentrate cylinder by concentrate pump and mix the press cake then evaporating and drying into the product inside the dryer.

Specifications	Capacity (t/h)	weight (t)	Power(kW)	Dimensions(m)
E-XH-1500	1500	6	35	4 ×2.5 ×13
E-XH-2500	2500	9	45	4 ×2.5 ×13
E-XH-3500	3500	12	60	5×2.5 ×13.5
E-XH-4500	4500	15	65	5 ×2.5 ×14
E-XH-5500	5500	18	70	5×2.6×15
E-XH-6500	6500	21	75	6×2.6 ×15
E-XH-7500	7500	24	80	6×2.7×15
E-XH-10000	10000	30	100	8 ×3.5 ×15.8

ApplicationEvaporator is the key component of back-end processing in wet fish meal production process. The fish liquid separates into fish protein water through the separator and the fish protein water turns into concentrated liquid through the separator. Fish protein contains a variety of nutrients and is absorbed easily by animals. To add the protein concentrate liquid and to dry fish meal products, fish meal protein increase4-5%.Rich nutrition, best quality and increased 20-30% of fish meal flour yield.

---
