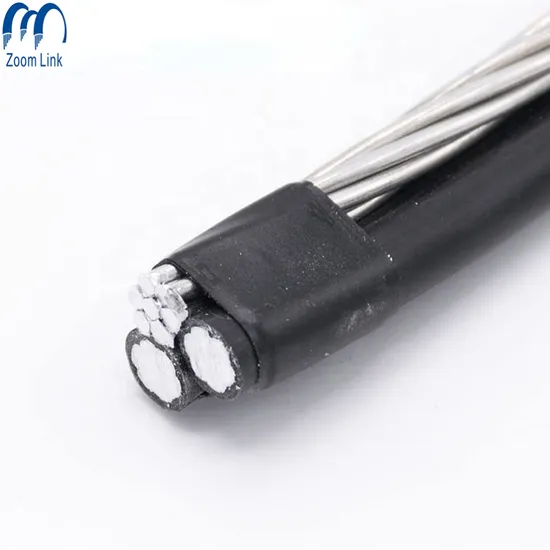

600V XLPE Caai Cable Overhead Aerial Bundle Cable 3X25+25 mm2

Product Description

Product Description600V XLPE Caai Cable Overhead Aerial Bundle Cable 3x25+25 mm2
1.Description
CABLES AUTOPORTANTES MULTI-CONDUCTORES DE ALUMINIO. Aluminum conductor with aluminum alloy supporting cable (support conductor can be bare "ND" or insulated "NA")
2.Application-For overhead networks of secondary energy distribution low‐cost electricity, in urban and rural areas. -Whether it's on the post or on the wall cases, with appropriate attachments. They don't need to be used insulator3.Standards
We can supply this conductor according to different recognized standards, such as :International IEC 60228; IEC 60811-201; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-502; IEC 60811-507; IEC 60811-511 National ASTM A 475; NTP 370.254;
NTP-IEC 60228
customer special specification also can be satisfied,we will do our best to meet your requirements
4.OPERATING TEMPERATURE90º C
130ºC in emergency conditions.
250ºC in short circuit conditions.
5.Rated voltage
U0 / U = 0.6 /1 kV
6. SPECIAL PRECAUTIONS
It is recommended not to use these cables in areas with salty or contaminated environment, due to the low corrosion resistance of aluminum.
The derivations and connections with copper cables should be made by means of appropriate techniques should be used.
During installation, care should be taken not to damage the cable surface. CAAI CABLE (ND)
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS

TRAINING	Phase Insulation thickness	External Diameter (*)	Nominal Mass	Maximum D.C. Resistance 20 ºC Ohm/km		Inductive Reactance at 60Hz Ohm/km		Voltage drop Factor(**) V/A km
	mm	mm	Kg/km	Phase	lighting	Phase	lighting	Phase	lighting
1x16+ND25	1.14	17	125	1.910	‐	0.0943	‐	3.491	‐
2x16+ND25	1.14	17	190	1.910	‐	0.0957	‐	3.493	‐
2x25+ND25	1.14	19	245	1.200	‐	0.0873	‐	2.223	‐
2x35+ND25	1.14	20	305	0.868	‐	0.0825	‐	1.628	‐
2x50+ND35	1.52	24	430	0.641	‐	0.0832	‐	1.225	‐
2x70+ND50	1.52	28	600	0.443	‐	0.0833	‐	0.874	‐
2x95+ND70	1.52	32	800	0.320	‐	0.0807	‐	0.652	‐
2x120+ND70	2.03	35	960	0.253	‐	0.0785	‐	0.531	‐
2x25+16+ND25	1.14	19	310	1.200	1.910	0.0925	0.1093	2.229	3.507
2x35+16+ND25	1.14	20	370	0.868	1.910	0.0862	0.1135	1.632	3.511
2x50+16+ND35	1.52	24	490	0.641	1.910	0.0843	0.1242	1.227	3.523
2x70+16+ND50	1.52	28	660	0.443	1.910	0.0822	0.1352	0.872	3.534
2x95+16+ND70	1.52	32	860	0.320	1.910	0.0781	0.1436	0.649	3.543
3x16+ND25	1.14	17	250	1.910	‐	0.1030	‐	3.500	‐
3x25+ND25	1.14	19	340	1.200	‐	0.0952	‐	2.231	‐
3x35+ND25	1.14	20	420	0.868	‐	0.0906	‐	1.636	‐
3x50+ND35	1.52	24	590	0.641	‐	0.0912	‐	1.234	‐
3x70+ND50	1.52	28	830	0.443	‐	0.0913	‐	0.882	‐
3x95+ND70	1.52	32	1 100	0.320	‐	0.0888	‐	0.660	‐
3x120+ND70	2.03	35	1 350	0.253	‐	0.0868	‐	0.539	‐
3x16+16+ND25	1.14	17	310	1.910	1.910	0.1095	0.1095	3.507	3.507
3x25+16+ND25	1.14	19	400	1.200	1.910	0.0995	0.1163	2.236	3.514
3x35+16+ND25	1.14	20	490	0.868	1.910	0.0935	0.1208	1.639	3.519
3x35+16+ND35	1.14	20	520	0.868	1.910	0.0935	0.1208	1.639	3.519
3x50+16+ND35	1.52	24	650	0.641	1.910	0.0925	0.1323	1.235	3.531
3x50+25+ND35	1.52	24	680	0.641	1.200	0.0925	0.0952	1.235	2.231
3x70+16+ND50	1.52	28	890	0.443	1.910	0.0910	0.1440	0.882	3.543
3x95+16+ND70	1.52	32	1 170	0.320	1.910	0.0875	0.1529	0.659	3.552
3x120+16+ND70	2.03	35	1 410	0.253	1.910	0.0841	0.1583	0.536	3.558

CAAI CABLE (NA)
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS

TRAINING	Phase Insulation thickness	External Diameter (*)	Nominal Mass	Maximum D.C. Resistance 20 ºC Ohm/km		Inductive Reactance at 60 HZ Ohm/km		Voltage drop Factor(**) V/A km
	mm	mm	Kg/km	Phase	lighting	Phase	lighting	Phase	lighting
1x16+NA25	1.14	18	160	1.910	‐	0.0943	‐	3491	‐
2x16+NA25	1.14	18	220	1.910	‐	0.0957	‐	3.493	‐
2x25+NA25	1.14	21	280	1.200	‐	0.0873	‐	2.223	‐
2x35+NA25	1.14	22	340	0.868	‐	0.0825	‐	1.628	‐
2x50+NA35	1.52	26	470	0.641	‐	0.0832	‐	1.225	‐
2x70+NA50	1.52	30	660	0.443	‐	0.0833	‐	0.874	‐
2x95+NA70	1.52	34	860	0.320	‐	0.0807	‐	0.652	‐
2x120+NA70	2.03	38	1020	0.253	‐	0.0785	‐	0.531	‐
2x25+16+NA25	1.14	21	340	1.200	1.910	0.0925	0.1093	2.229	3.507
2x35+16+NA25	1.14	22	400	0.868	1.910	0.0862	0.1135	1.632	3.511
2x50+16+NA35	1.52	26	530	0.641	1.910	0.0843	0.1242	1.227	3.523
2x70+16+NA50	1.52	30	720	0.443	1.910	0.0822	0.1352	0.872	3.534
2 x 95+16+NA70	1.52	34	920	0.320	1.910	0.0781	0.1436	0.649	3.543
2x120+16+NA70	2.03	38	1080	0.253	1.910	0.0746	0.1487	0.526	3.548
3x16+NA25	1.14	18	280	1.910	‐	0.1030	‐	3.500	‐
3x25+NA25	1.14	21	370	1.200	‐	0.0952	‐	2.231	‐
3x35+NA25	1.14	22	450	0.868	‐	0.0906	‐	1.636	‐
3x50+NA35	1.52	26	630	0.641	‐	0.0912	‐	1.234	‐
3x70+NA50	1.52	30	880	0.443	‐	0.0913	‐	0.882	‐
3x95+NA70	1.52	34	1160	0.320	‐	0.0888	‐	0.660	‐
3x120+NA70	2.03	38	1410	0.253	‐	0.0868	‐	0.539	‐
3x16+16+NA25	1.14	18	340	1.910	1.910	0.1095	0.1095	3.507	3.507
3x25+16+NA25	1.14	21	430	1.200	1.910	0.0995	0.1163	2.236	3.514
3x35+16+NA25	1.14	22	520	0.868	1.910	0.0935	0.1208	1.639	3.519
3x35+16+NA35	1.14	22	560	0.868	1.910	0.0935	0.1208	1.639	3.519
3x50+16+NA35	1.52	26	690	0.641	1.910	0.0925	0.1323	1.235	3.531
3x50+25+NA35	1.52	26	720	0.641	1.200	0.0925	0.0952	1.235	2.231
3x70+16+NA50	1.52	30	950	0.443	1.910	0.0910	0.1440	0.882	3.543
3x95+16+NA70	1.52	34	1230	0.320	1.910	0.0875	0.1529	0.659	3.552
3x120+16+NA70	2.03	38	1470	0.253	1.910	0.0841	0.1583	0.536	3.558

Detailed Photos
Packaging & Shipping
Packing: wooden drum,iron-wooden drum,Woven Bag wrapping
Shipping: transport by sea
Port: Qingdao
As the customers requirementsWoven Bag wrapping(soft packing/rolls) : Advantages: low price, light weight and space saving.
Wooden Drum Packing Details:
The wooden drum will be fumigated.
Wooden Steel Drum:
This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm.
Company Profile
FAQFAQ
1.Are you a manufacturer or trading company?
We are a professional manufacturer.We can control your order from the first beginning to the last.
Welcome to visit us.We'll pick you up in Zhengzhou
2. How can I get a sample to test your quality?
The samples are free for you.New clients are expected to pay for the courier cost.
3.What's your Minimum Order Quantity?
Normally 1000m.How ever the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4.Can I get a discount?
It depends on your quantity,We can make a discount and afford the freight.
Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name we even custom the quality card to promote your company.
