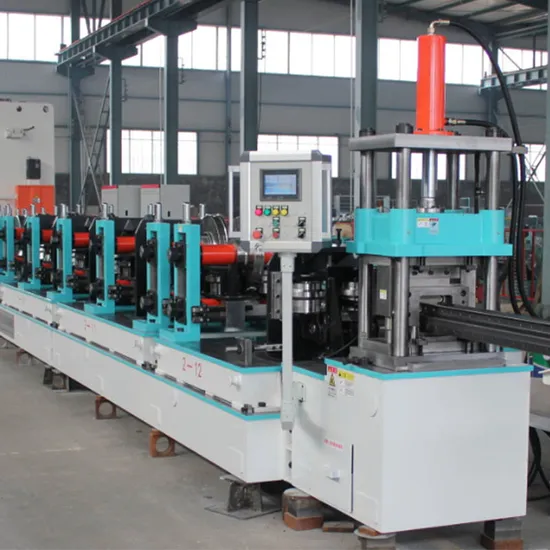

Full Automatic Shelves Rack Roll Forming Production Line with High Quality Supermarket Shelves Storage Pallet Upright Rack Production Line

Product Description

Shelves Rack Roll Forming Production Line With High Quality
Product Description
Storage rack is widely applied in storage and logistic industry. Our roll forming machine can continuously and automatically produce the racks. Meanwhile, the industry is developing, more and more customized parts from storage and logistic industry can be produced from roll forming machines.
Equipment Overview
1.The roller frame adopts an integral structure and is finished with precision processing. The distance between the upper and lower rollers is adjusted by the eccentric sleeve on the roller shaft. The locking device guarantees that the equipment is undecided. The upper and lower roller bearings are lubricated.
2.The casting arch is installed on the frame, and the distance is adjusted by rotating the screw. The forming machine uses a three-phase AC motor to drive the main reducer, which is installed in the middle of the forming machine. Drive the transmission box to drive in series, and the power is transmitted to the upper and lower shafts of the forming unit through the clutch. Necessary passes are equipped with upper and lower synchronization gears.
3.The roller frame adopts the archway structure with high rigidity; the positioning hole of the lower roller shaft of the archway adopts the fixed round hole positioning, and the positioning of the upper roller shaft adopts the sliding groove positioning. The roller shaft is made of high-quality steel and finished with precision processing to ensure assembly accuracy. The strength is sufficient, the shaft end is equipped with a bearing, placed in the bearing seat, and the whole is fixed on the arch slideway, and the gap between the upper and lower rollers is adjusted by the screw rod.

Product Parameters
Technical Parameter

Configurations	3T Manual Uncoiler(2 SETS), Roll Forming, Electric-Motor, Mould Cutting, hydraulic station, Control Cabinet
Control System	Automatic Colored Touch Screen Delta brand PLC Inverter
Main Power	7.5 KW
Pump Power	4 KW
Power Supply	380V, 3-Phase, 50Hz
Forming Speed	8-10 m/min
Roll Station	17 roller station
Shaft Diameter	57mm
Feeding Thickness	1.8mm
Overall Size	About 7200×1200×1500mm
Total Weight	Approximately 3600KGS

Manufacturing Processes
Transmission mode: Main motor → Gear reducer → Drive bevel gear box → Clutch → Lower roller shaft of the archway. Detailed Photos

Company Profile
COMPANY ADVANTAGE
Our workshop started since the year of 2008, built by our founder member Mr. XU, who was worked as leader engineer for first-class roll forming department in SINOMRCH(China National Machinery Industry Corporation). After years of development, we have exported to many countries in the world such as Italy, Ecuador, America, India, Indonesia, Philipines, Brazil, Thailand, Vietnam, Russia, Malaysia, Peru, Korea etc. and gained high reputation from our customers and the agents. Up yo now, our workshop space around 5000 square meter, the annual capacity is 20-30 lines.
Our Advantages
Machine Advantage

1.We adopts individual archway stands for rollers station, more strong and rigidity structure than other suppliers in china.
2.Individual gearbox for each archway rollers set, to assure the precision of the profile.
3.All of the machine main body and parts are quenched, with higher hardness(HRC58-62) and wear resistance, while other suppliers only rough steel welded.
4.The rollers material is American D2 and D3 standards, with long service life and low maintenance cost.
5.Professional Germany roller design software-Copra.
6.Long machine life, all of our machines can be used stable performance for more than 10-15 year, while other small and low quality supplier's machine only can be used for 1-2 years.

Packaging & Shipping
1 Lifting the machine into container2 Disassemble and pack with film for anti-humidity3 Machine trial before dispatch4 Loading the packages to container5 Fix with steel wire ropes in container to avoid damage6 Close and sealthe container7 Transport container to the port8 Ships and our machines go to the destination port
Our Service
1. OEM Design&Production
Our active engineer and design team can make the special machine according to customer's special requirements.
2. Delivery in Time Assurance
We assure the machines your ordered will delivered at promised time
3. Free Installation&Training
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training; installation operation video provided
4. Your Payment Protection
You can pay through Ali baba to protect your advance payment
5. Online Factory Inspection Service
The factory inspection before your order, will be provided online by video meeting app, like room, wechat,skype etc..
6. Long Life Maintenance of Machine
We keep provide the maintenance for all machine life
7. International Third Party Inspection Supported
You can appoint the international third party party, such as TUV, SGS,BV, do inspection before shipment
FAQ
1. Q: Are you a Manufacturer or a trading company?
A:We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies
2. Q: How long have your factory been in this field? And how many staff do you have?
A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
3. Q:Where are you and how can I visit you?
A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
4. Q: Can you provide a customized solutions?
A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for installation gaudiness on line.

---
