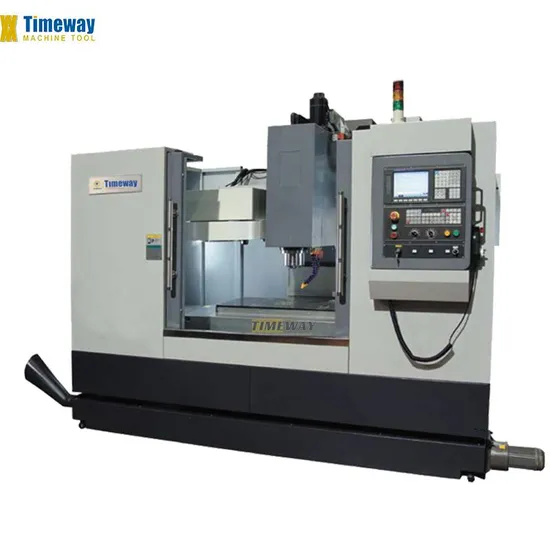

High Precision Vertical Mchining Center

Product Description

Vertical Machining Center
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen
balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,
MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement systems;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.

Specifications	Unit	VMC550	VMC650	VMC745	VMC850
Table size	mm	320x800	400x800	420x800	500x1000
T-slot (No./width/pitch)	mm	3/14/110	3/18/130	5/18/80	3/18/150
Loading capacity	kg	350	500	500	500
Longitudinal travel (X)	mm	550	650	700	800
Cross travel (Y)	mm	340	400	450	500
Vertical travel (Z)	mm	500	500	500	500
Distance from spindle nose to table	mm	100-600	120-600	100-600	150-650
Distance from spindle center to column	mm	390	445	470	550
Spindle taper	-	BT40	BT40	BT40	BT40
Spindle speed	rpm	8000	8000	8000	8000
X/Y/Z-axis rapid feed speed	m/min	12/12/12	15/15/15	15/15/15	15/15/15
X/Y/Z-axis feed motor torque	N.m	7.7/7.7/7.7	7/7/10	10/10/10	15/15/15
X/Y/Z-axis positioning accuracy	mm	0.01	0.01/0.008	0.01/0.008	0.01
X/YZ-axis repetability accuracy	mm	0.008	0.008/0.005	0.008/0.005	0.008
Main motor power	kw	5.5/7.5	5.5/7.5	5.5/7.5	7.5/11
Air pressure source	kg/cm2	8	8	8	8
Total power	Kva	10	12	12	15
Tool magazine capacity	T	12 (Crousel)	16 (Crousel)	16 (Crousel)	24 (Disc)
Guideway type	-	Sliding/Linear	Sliding/Linear	Sliding/Linear	Sliding

---
