Taiwan′s Original High-Precision Accessories Tck66 CNC Slant Bed Lathe

Product Description

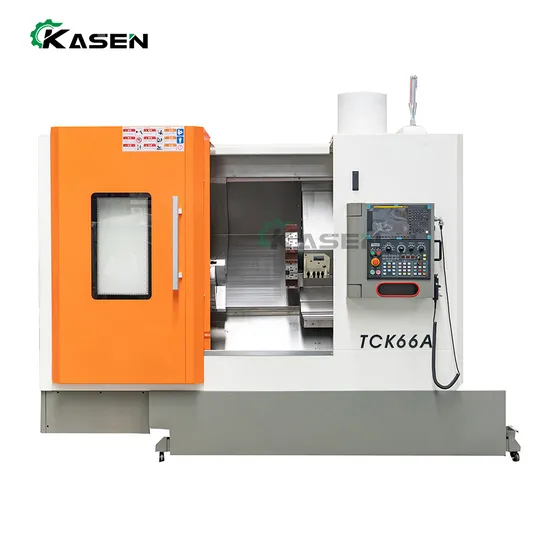

Taiwan's Original High-Precision Accessories Tck66 Cnc Slant Bed Lathe
Product Description
Features:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the interna and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Product Parameters

SPECIFICATIONS	UNIT	TCK66
Max. swing dia. over bed	mm	660
Max. swing dia. over slide	mm	400
Max. work piece length	mm	750
Max. bar capacity	mm	75
Max. processing diameter(plate)	mm	500
Spindle nose	GB59001	A2-8
Spindle bore	mm	85
Spindle speed	rpm	0-2800
Spindle shift mode		Variable frequency speed
Spindle motor power( continuous value)	KW	11/15
Chuck type		hydraulic chuck
Chuck size	inch	10
X/Z axis rapid traverse	m/min	X:24 Z:24
X/Z axis servo motor torque	N.m	X:10 Z:10
X/Z axis travel	mm	X:260 Z:800
Guide way type		linear guide way
Turret type		horizontal 8/12 station
Tool shank size	mm	25*25/Ø32
Tail stock type		hydraulic
Tail stock quill dia.	mm	100
Tail stock quill travel	mm	700
Tail stock quill taper		MT5#
Total rated power	KW	18
Total rated current	A	38
Net weight	kg	5500
Machine dimension(L*W*H)	mm	3300*2000*2100

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
