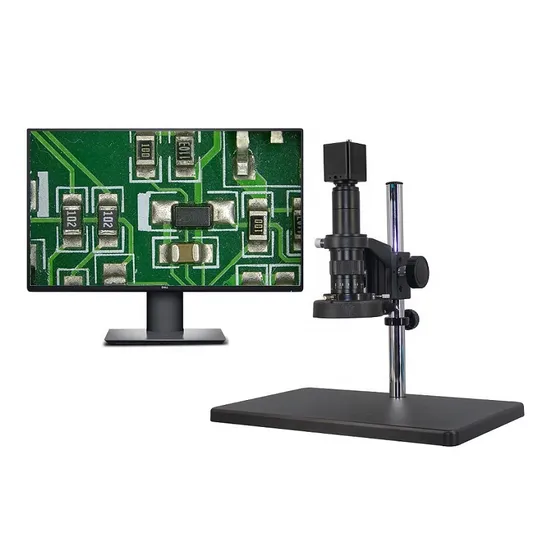

Boshida Industrial Inspection Digital Video Microscope for Mobile Repair and PCB Checking

Product Description

Products Description

Model	V200-A01
Magnification	14X-180X
Lens	Main lens: 0.7X-4.5X Optional auxiliary lens: 0.5X, 2X
Camera	VGA camera. Resolution: 2MP, 1920*1080P. Sony 1/2.3 inch CMOS color sensor. Frame rate: 45fps. Camera settings by buttons.
Stage	Standard base board: 380mm*260mm
Illumination	Hight light LED ring light, brightness adjustable.
Optional parts	Flexiable LED ring light Auxiliary lens Main lens Boom arm stand 12-22 inch monitor.
Power supply	AC100-240V, 50/60Hz.

Boom arm stand ABOUT US PRODUCT APPLICATION FACTORY EXPERIMENT FAQ Q1How can you do sample testing? A1We can suggest microscope according to applications of user. We had thousands of sucessful cases.If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it,don't need to buy it.
Q2What kind of customization you can supply?
A2Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements. Support OEM & ODM
1. Free sample testingWe can test sample of user and help user to choose the most suitable microscope according to applications and requirements. 2. Online trainning. 3. Life time technical service. 4. Free SolutionsWe can suggest solutions according to applicatins and requirements. 5. CustomizedWe can customize products according to applicatins and requirements. Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.

---
