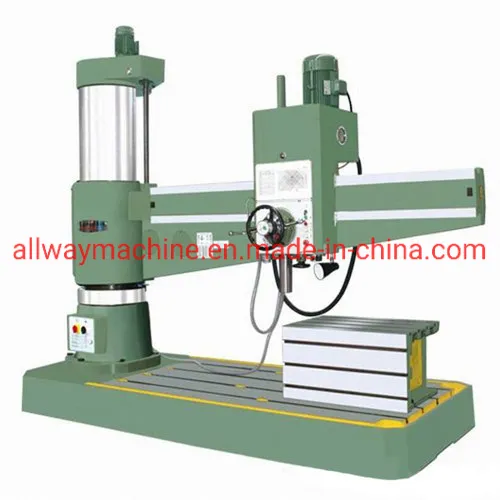

Heavy Duy Hydraulic Radial Drilling Machine Z30100X31 for Drilling, Tapping etc.

US$45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z30100X31
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Hydraulic
Drilling,Tapping
Transport Package
Pallet
Specification
32, 40, 50, 63, 80, 100, 125
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
2000PCS/Year

Product Description

1. Hydraulic Radial drilling machine,with high performance/price ratio. Gather mechanical -electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengagedat any time.
3.with safe and reliable feed safety machine, all parts asy operation and change.
SPECIFICATIONS Units Z30100x31
Max. drilling dia. mm 100
Distance between spindle nose and table surface mm 750-2500
Distance from spindle axis to column surface mm 570-3150
Spindle travel mm 500
Spindle taper - MT6
Spindle speed range rpm 8-1000
Spindle speed steps - 22
Spindle feed range mm/r 0.06-3.2
Spindle feed steps - 16
Main motor power kw 15
Table size mm 1250x800x630
Lifting motor power kw 1250
Machine weight kg 20000
overall dimension mm 4660*1630*4525
