48W SMD Slim Fit LED Panel Light for Office Roofs 600X600mm

Product Description

48w SMD Slim fit led panel light for office roofs 600x600mm
600X600mm 48W Led Panel Light Data Sheet:

Dimension: 600mm * 600mm	Power: 48W
Input Voltage: AC85-265V	LED Type: 4014 High Lumin
LED quantity: 180pcs 0.2w/pcs 0.2w/pcs	View angle: 120°Viewing angle
CCT:3000/4000/5000/6000K	CRI: ≥80Ra
Luminous flux: 4800lm	Power Factor: >0.92
Life time: >50,000 hrs	Working Environment:Indoor
Housing Material: Aluminum Alloy+PC
Working Temperature: -20ºC ~ +50ºC

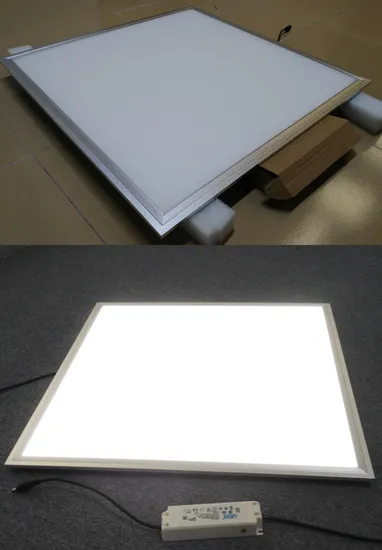

Led Panel Light Image:
LED Panel Light Features:
1. Energy-efficient, environment-friendly
2. No glare, no noise, no UV
3. Ultra slim and fashionable design
4. Maintenance free, easy installation
5. No maintenance for the life of unit, apart from cleaning
6. Remote-control dimming available
7. Solid-state, high shock/vibration resistant
8. No fluorescent flickering
9. No danger of broken glass
10. Long lifetime, 50, 000+hrs(5+years)
LED Panel Light Installation
1. Please note the power wiring of positive and negative when installation power wiring (positive with word)
2. Connect into the panel lamp terminals power wire needs to tighten with the screw
3. To avoid danger, pls cut off power supply before connecting wiring. 4. Lock the screw, pls not use
Embedded installation of led panel light
1. Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling, pls do not force squeezing or through the ceiling
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds
Suspension installation of led panel light
1. Pls put a soft mat on the floor before Installing corner fixing parts, lest scratches or damaged panel
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1. The first open four φ 5mm holes on the ceiling
2. Make the glue plug put into open good holes
3. Screw through fixed cap, locked in plug hole
Aging Test of led panel light :
Our Company Product Range:
Led Flood Light
UFO Led High Bay Light
Linear Led High Bay Light
Tri-proof Led Light
Led Street Light
Led Panel Light
Led Tube Light
After-sales service
1. We offer 5 years warranty base on different price and products.
2. Any quality issue, we will replace for free within guarantee period.
3. Any accessories, we always support our customers.
4. During warranty time,we replace new part at free of charge and take freight.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 1 pcs /carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. Discounts are offered based on order quantities.
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ
1, Are you factory?
A:Yes, we produce LED panel lights for more than 6 years.

2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.

3, I want high quality LED panel light, can you do?
A:Yes, quality is our culture,we only use best components to build our led panel lights.

4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
A:Yes!

5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE,CCC,ROHS,FCC,ISO900, authentication.

7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.
Welcome you visit us anytime!

---
