Basic Info.
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Equipment Mode
Decentralized
DC_out Protection
Anti-Reverse Connection, Over-Voltage Protection
DC_in Protection
Anti-Reverse Connection, Over-Voltage Protection
Isolation Mode
Optocoupler
Signal Type
Bat.Mode/Bat.Ready/Sw/Remote/Bat.Start/Dev.Psts
Communication Interface
USB
Communication Protocol
Modbus RTU
Operating Temperature
-20ºC~60ºC
Transport Package
Individual Carton Packing with Waterproof Film
Specification
31x21x9cm/G. W. 0.5kg
Production Capacity
999999
Packaging & Delivery
Package Size
31.00cm * 21.00cm * 9.00cm
Package Gross Weight
1.000kg
Product Description

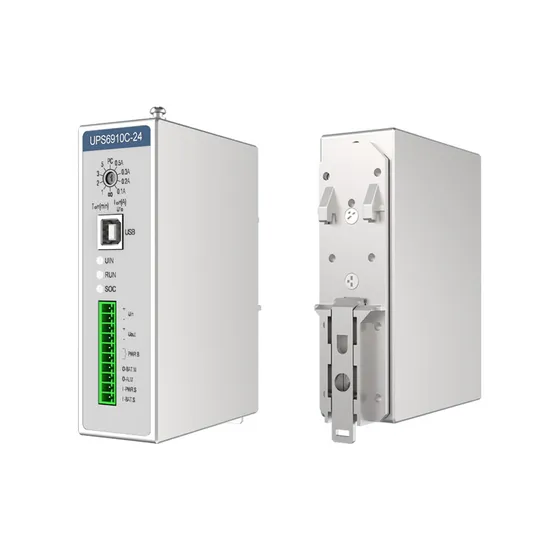

·Compact aluminium-magnesium alloy profile housing, dust-proof design ·Single side connection, DIN rail wall mount ·DC 24V power supply, industry standard design ·With USB control, set UPS parameters and extend shutdown time ·Max load is 120W ·UPS can supply power for more than 12 minutes at 60W load
All Box PCs can be configured with 24V DC UPS. UPS6920C-24 can let the box PCs work for a period of time when the main power is turned off abnormally. During the time,it informs the Box PCs to save the current status and data into the hard disk and other memory.The UPS continuous power supply to the box PC after power failure can be set and controlled through the USB port of the UPS connected to the box PC.The DC UPS power module based on the super capacity effectively prevents the loss of important data after a power failure and ensures stable operation throughout the system.
| Model | UPS6910C-24 |
| DC_IN Voltage | DC24V(+15~-20%) *Affect the charging effect if the input voltage is less than 24V |
| Electricity | 4A |
| Protection | Anti-reverse connection/Overvoltage protection/Pulse group 2KV/ Surge 2kV/ electrostatic contact 4kV, air 8kV/ClassA |
| DC _OUT Voltage | 24V |
| DC _OUT Protection | Overcurrent and overload protection |
| Max power | 80W |
| IO Voltage | DC 24V |
| Signal Type | Signal specification,DC OK,Bat.Mode,Bat.Ready,SW,Remote,Bat.Start,Dev.Psts |
| Mount | DIN-Rail Install |
| Net weight | 0.5kg |
>>
