KIMA Excavator China Small Digger 4ton New Hydraulic Crawler Mini Excavator

Product Description

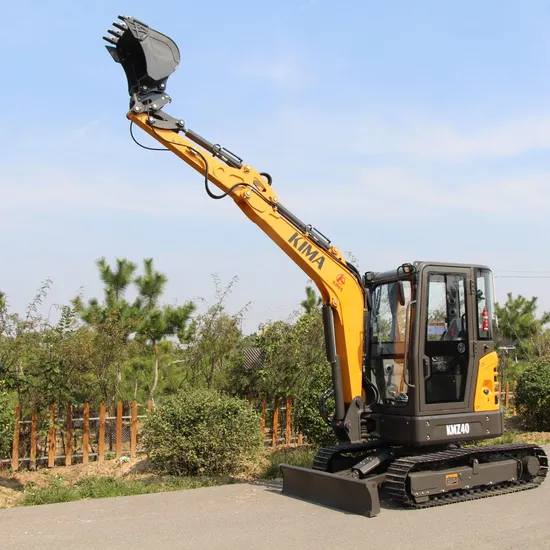

KMZ40 Mini Excavator
Excavator engine:Kubota
Excavator dimension:4915x1720x2525mm
Excavator weight:3810KGS
Excavator Bucket capacity:0.12m³
This excavator is suitable for losing soil of vegetable greenhouse, campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.
Details

Type of cab		Cabin
Bucket capacity		m3	0.12
Bucket width		mm	570
Machine weight		kg	3810
Dimensions	Overall length	mm	4915
	Overall height	mm	2525
	Overall width	mm	1720
	Ground clearance	mm	295
Engine	Brand	Kubota
	Model	D1703
	Output	KW	18.5
Working ranges	Max digging height	mm	4800
	Max dumping height	mm	3406
	Max digging depth	mm	3208
	Max. digging radius	mm	5480
	Min .swing radius	mm	2530
	Deflection angle(Left/Right)	°	55/65
	Swing radius at tail	mm	860
	Swing radius at front	mm	2530
	Max digging force (Arm)	kN	18.2
	Max digging force (Bucket)	kN	30.4
Track	Type		Rubber track
	Track grounding length	mm	1670
	Track length	mm	2154
	Track gauge	mm	1420
Dozer size	Height	mm	350
	Maximum lifting height	mm	365
	Maximum cutting depth	mm	385
Traveling speed		km/h	2.4/4.4
Gradeability		deg	58%/30°
Swing speed		r/min	12
Ground pressure		kpa	32
Hydraulic pressure		Mpa	22.5
Fuel tank capacity		L	40
Hydraulic oil tank capacity		L	44

Company Profile
Linyi Kima Machinery CO.,LTD is a professional manufacturer of wheel loader and excavator in China.
Our leading products include 0.6 to 3 ton wheel loader and mini excavator.All products have passed the following certificates:ROPS&FOPS,CE,TUV.
Now our machines has a good market in Australia, SouthAmetica, Agentina, Canada, Germany, Norway, Finland, Sweden, Netherlands, Poland, Russia, etc.
Certification
After Sales Service
1. Our technicians will provide on-site service to customers in China. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.2. Within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.

FAQ:
Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you?Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000 hours running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.

---
