24V Output DC-DC Converter with 8kv Antistatic

Product Details

Product Description

Product Description

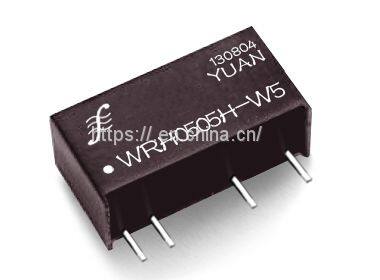

24V Output DC-DC Converter with 8kv Antistatic
WRFxxxxxH Series DC DC Converter Features:
Low cost, small size.
High power density.
3KV high galvantic isolation.
No heat sink required.
Fixed input, signle output voltage.
Rated 0.1W-2W output
Industrial standard pin-out
PCB Mounted type.
Short circuit protection
Applications:
Electric Power System, Power monitoring, voltage conversion.
Dual power isolation in digital communication ports of RS232/485, CAN bus.
Power supply isolation in intelligent control, security equipments, telecom, etc.
Safety isolation in ground loop elimination, medical equipments and instrument.
Isolation & power supply for analogue electric circuit ( Transmitter & sensors).
Power supply isolation & transfer for safety monitoring and smart building system.
Ground loop interference control.
Battery power supply, voltage transfer, power distribution.
PLC, DCS, PC isolation regulated power supply.
Specialy for electrical power RS485 communication isolation electric load management terminal.
RS485/RS232/RS422/USB/IEEE1394 interface.
Isolation static(>8KV)

Part Number	Vin(VDC)	lin(No-Load)mA	lin(Full-Load)mA	Vout(VDC)	lout,Max(mA)	Eff.
WRF0505H-W75	5	22	220	5	150	69
WRF0505H-1W	5	28	300	5	200	70
WRF0512H-1W	5	25	312	12	84	74
WRF1212H-1W	12	22	123	12	84	78
WRF1209H-1W	12	16	123	9	111	78
WRF2405H-1W	24	7	64	5	200	80
WRF2409H-1W	24	10	63	9	111	80
WRF2412H-1W	24	10	63	12	84	80
WRF0512H-2W	5	45	545	12	167	72
WRF0505H-2W	5	50	615	5	400	65
WRF0509H-2W	5	47	545	9	200	66
WRF1212H-2W	12	35	245	12	167	68
WRF2405H-2W	24	16	128	5	400	65

---
